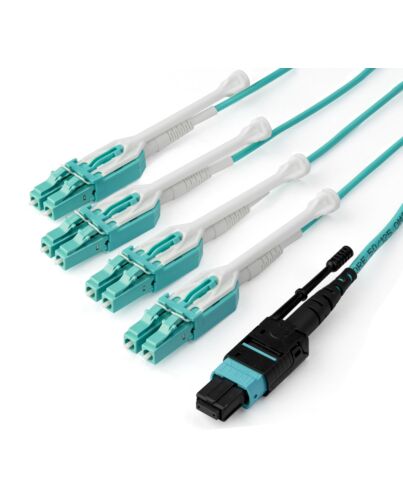

StarTech.com 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multie Fiber Optic Cable, OFNP Plen
£42.79
StarTech.com 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multie Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord, 3 m, OM3, MPO/MTP, 8x LC
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection f a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M f StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection f a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M f StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
Key Features
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multie Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multie cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect f a 40GBase-SR4 QSFP+ ule to four LC SFP+ transceivers
- SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; al Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ≤0.5dB (MTP), ≤0.2dB (LC)
Specifications
Features
Cable length*
3 m
Fibre optic type
OM3
Connector 1*
MPO/MTP
Connector 2*
8x LC
Connector 1 gender*
Male
Connector 2 gender*
Male
Product colour*
Aqua colour
Core diameter
50 µm
Cladding diameter
125 µm
Fiber e structure
Multi-e
Data transfer rate
40 Gbit/s
Certificates
Compliance certificates
RoHS
Weight & dimensions
Weight
55 g
Packaging data
Package width
220 mm
Package depth
200 mm
Package height
10 mm
Package weight
62 g
Logistics data
Master (outer) case width
235 mm
Harmonized System (HS) code
85447000
Master (outer) case length
385 mm
Master (outer) case height
190 mm
Products per master (outer) case
50 pc(s)
Additional Information
| EAN/UPC | 0065030878944 |
|---|---|
| MPN | MPO8LCPL3M |
| BRAND | STARTECH |
