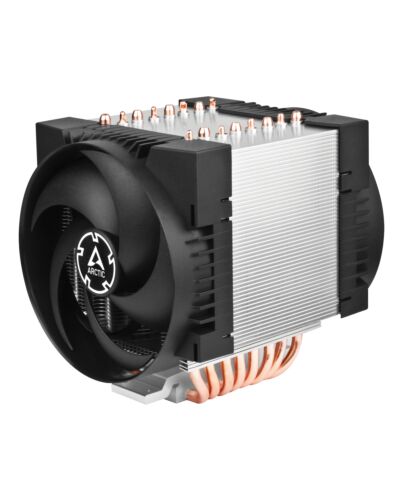

ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel

Name: ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel
Brand: ARCTIC
SKU: MAZ-0000025056
Price: 43.13 GBP
Availability: InStock

Be the first to review this product

£43.13

ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel, Air cooler, 12 cm, 122.16 m³/h, Aluminium, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

Reasons To Buy

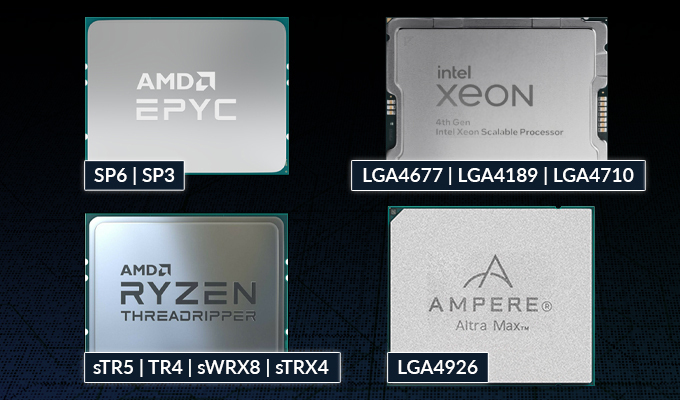

Versatile Multi-Compatible Server Cooler

The Freezer 4U-M Rev. 2 stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4710, LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. It also supports the Ampere Altra LGA4926*. Remarkably, despite its impressive cooling capabilities, the Freezer 4U-M Rev. 2 consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 64 cores and a TDP of up to 350 watts.

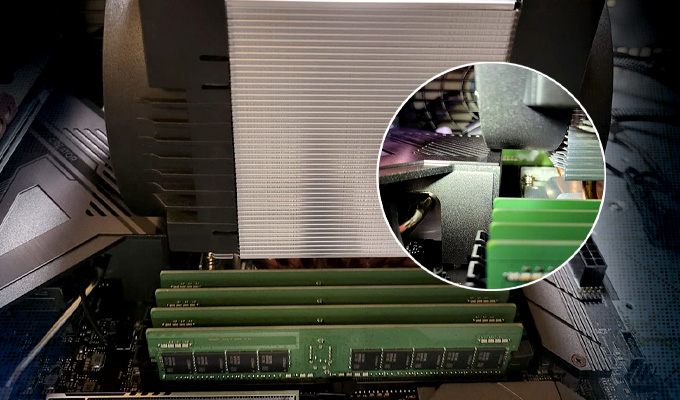

RAM Compatibility and Clearance

The Freezer 4U-M Rev. 2 offers a generous 53 mm of clearance for memory, allowing the use of RAM ules with erate heatsinks. This space facilitates efficient airflow and ensures compatibility with various types of RAM.

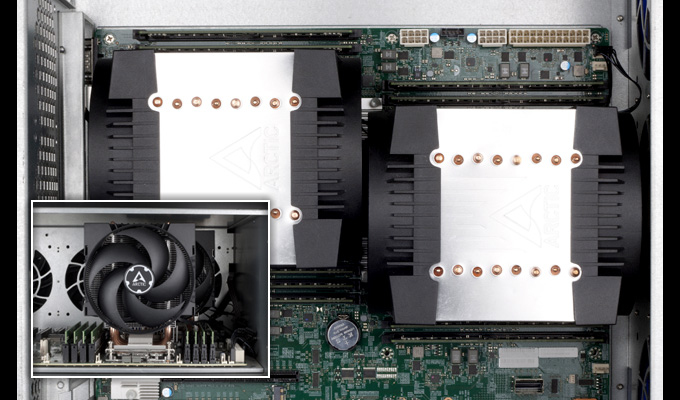

Compact Design and Dual Socket Compatibility

With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U-M Rev. 2 features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

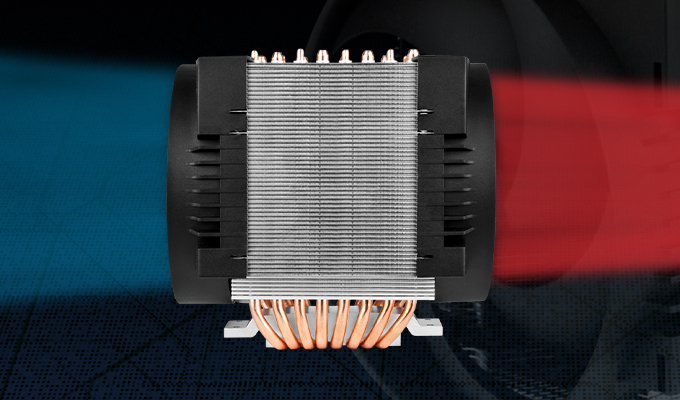

Powerful Fans in Push-Pull Configuration

The installed PWM fans benefit f all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M Rev. 2's high fin density and provide efficient heat dissipation in push-pull e, even in power-hungry applications. Especially office workstations benefit f the quiet fans. The dual configuration also allows for inherent redundancy and protects the system f total shutdown caused by heat.

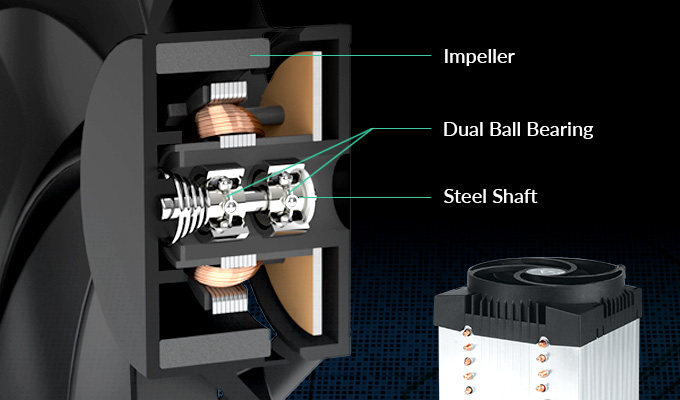

Designed for continuous operation

Both fans of the Freezer 4U-M Rev. 2 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

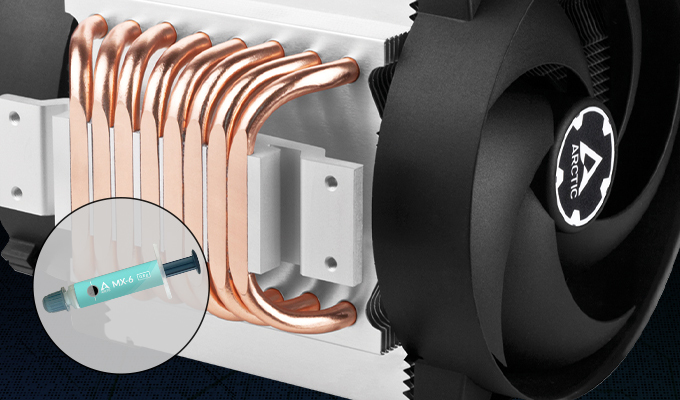

Premium Thermal Paste Included

The Freezer 4U-M Rev. 2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.

Specifications

Performance

Suitable location*

Processor

Type*

Air cooler

Fan diameter

12 cm

Supported processor sockets

LGA 4189, LGA 4677 (Socket E), LGA 4710 (Socket E2), SP6, Socket TR4, Socket TR5, Socket sTRX4, Socket sWRX8

Maximum airflow

71.9 cfm

Airflow

122.16 m³/h

Bearing type

Dual ball bearing

Fan noise level (max)

40 dB

Fan speed (min)

400 RPM

Fan speed (max)

2300 RPM

Fan static pressure

3.3 mmH2O

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Aluminium, Black

Number of fans

2 fan(s)

Number of fins

Fins material

Aluminium

Number of heat pipes

Fan connector

4-pin

Rack capacity

Power

Starting voltage

8 V

Thermal Design Power (TDP)

350 W

Fan voltage

12 V

Fan current

0.12 A

Weight & dimensions

Width

156 mm

Depth

124 mm

Height

145 mm

Weight

1.27 kg

Heat pipes diameter

6 mm

Cable length

0.2 m

Package width

160 mm

Package depth

211 mm

Package height

141 mm

Package weight

1.55 kg

Packaging content

Package type

Box

Additional Information

More Information
EAN/UPC	4895213704960
MPN	ACFRE00133B
BRAND	ARCTIC
