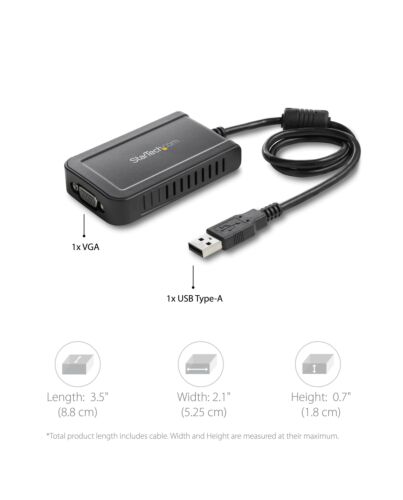

StarTech.com USB 2.0 to VGA Adapter, USB to VGA Monitor Converter for Windows, 1080p (no support for
£16.49
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The USB2VGAE3 USB VGA Multi-Monitor External Video Adapter lets you add a high-resolution (1920x1200) external VGA output to your desktop or laptop computer, using an available USB 2.0 port.
A cost-effective solution for systems that lack the outputs required for a multi-monitor setup, this high-performance USB to VGA adapter can be used to mirror your primary display and show the same image on both screens, or extend your desktop to double your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5 total) USB2VGAE3 USB video adapters, creating multiple VGA connections to add displays quickly and easily - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- COMPATIBILITY: This adapter is only compatible with Windows and does not support macOS, CheOS or Linux; Works with all Windows X86/X64/ARM platforms: Intel, AMD, and Snapdragon X Copilot+ PC; Administrator rights are required to install the drivers
- EXTERNAL VIDEO ADAPTER: USB to VGA adapter lets you lets you connect your laptop or desktop computer to a VGA monitor using a single USB Type-A port; 19in (50cm) cable length; TAA Compliant
- 1920x1200 DISPLAY: With display resolution up to 1920x1200, you don't have to worry about sacrificing quality when you use this USB 2.0 External Video & Graphics Card
- USB POWERED: Drawing power f the USB port of your Windows laptop, this USB display adapter doesn't require any additional cords or plugs
- SCALABLE SOLUTION: With the ability to connect up to five adapters to one source, the external graphics adapter offers flexible setup options for future expansion
Specifications
Performance
USB connector type
USB Type-A
USB version*
2.0
DVI output*
No
HDMI output*
No
DisplayPort output*
No
Number of displays supported*
1
VGA (D-Sub) output
Yes
Internal memory
32 MB
Maximum resolution
1920 x 1200 pixels
Supported graphics resolutions
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Chipset
Trigger - T2-285A
USB pass-through
No
Certification
CE, FCC, RoHS
Design
Product colour
Black
Integrated USB cable
Yes
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Width
52.5 mm
Depth
88 mm
Weight & dimensions
Height
18 mm
Weight
94 g
USB cable length
0.5 m
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Storage temperature (T-T)
-25 - 75 °C
Operating relative humidity (H-H)
0 - 95%
Packaging data
Package width
145 mm
Package depth
210 mm
Package height
40 mm
Package weight
247 g
Packaging content
Drivers included
Yes
Manual
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 0065030844178 |
|---|---|
| MPN | USB2VGAE3 |
| BRAND | STARTECH |
