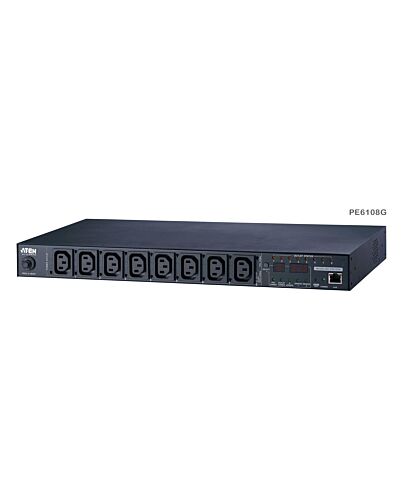

ATEN 1U 10A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software
£383.74
ATEN 1U 10A 8 Outlet Switched Bank Metered PDU + Free Eco PDU Manager Software, Metered, Switched, 1U, Horizontal, Metal, Black, 8 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
-8 outlets
-15A (UL derated 12A) / 10A
-PDU Power Measurement
The PE6108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE6108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
-15A (UL derated 12A) / 10A
-PDU Power Measurement
The PE6108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE6108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
Key Features
- Remote power outlet control (On, Off, Power Cycle) by individual outlets
- Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
- Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices Management
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet
Specifications
Design
PDU types*
Metered, Switched
Rack capacity*
1U
Mounting
Horizontal
Housing material
Metal
Product colour
Black
Ports & interfaces
AC outlets quantity*
8 AC outlet(s)
Power plug
C20 coupler
AC outlet types*
C13 coupler
Ethernet LAN (RJ-45) ports
1
Features
LED indicators
LAN, Link, Power, Status
Cable length
3 m
Management features
Monitoring
Current
Power
Nominal input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Maximum current*
10 A
Nominal output voltage
100 - 240 V
Maximum input current per phase
10 A
Certificates
Compliance certificates
RoHS
Certification
CE, TUV-CB, CE-LVD
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
220.4 mm
Depth
432.4 mm
Height
44 mm
Weight
3.27 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Packaging data
Package weight
4 kg
Package width
116 mm
Package depth
499 mm
Package height
324 mm
Logistics data
Master (outer) case net weight
9.81 kg
Master (outer) case width
388 mm
Master (outer) case length
519 mm
Master (outer) case height
348 mm
Master (outer) case gross weight
13 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423777620 |
|---|---|
| MPN | PE6108G |
