Components

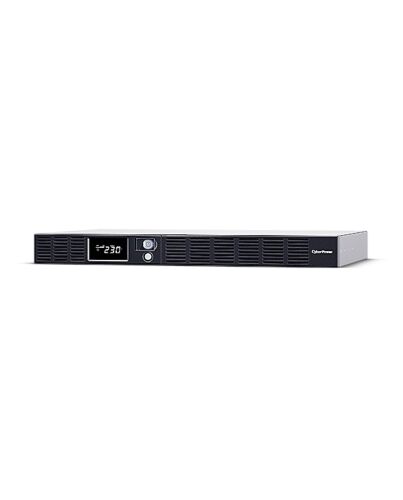

CyberPower OR1500ERM1U uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 6 AC outlet(s)
£385.14
CyberPower OR1500ERM1U, Line-Interactive, 1.5 kVA, 900 W, Sine, 165 V, 271 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CyberPower OR1500ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Key Features
- Line-interactive UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Hot-swappable Batteries
- Surge and Spike Protection
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- USB Connectivity Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
Specifications
Features
UPS topology*
Line-Interactive
Output power capacity*
1.5 kVA
Output power*
900 W
Waveform*
Sine
Input operation voltage (min)*
165 V
Input operation voltage (max)*
271 V
Input frequency*
50/60 Hz
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
810 J
Response time
4 ms
Power factor
0.6
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload
Audible alarm(s)
Yes
Audible alarm modes
Fault, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
6 AC outlet(s)
USB port
Yes
Serial ports quantity
1
Modem (RJ-11) ports
1
Ethernet LAN (RJ-45) ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Typical backup time at full load
2.5 min
Typical backup time at half load
11 min
Battery recharge time
8 h
Hot-swap battery
Yes
Design
Form factor*
Rackmount
Housing material
Metal
Rack capacity
1U
Cable length
1.83 m
Product colour*
Silver
Display type
LCD
LED indicators
Operation
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
RoHS
Certification
CE, EAC, RCM
Packaging content
Cables included
USB cable
Weight & dimensions
Width
443 mm
Depth
389 mm
Height
44 mm
Weight
14.9 kg
Packaging data
Package width
545 mm
Package depth
515 mm
Package height
158 mm
Package weight
23.1 kg
Logistics data
Harmonized System (HS) code
8504408590
Country of origin
China
Additional Information
| EAN/UPC | 4712856274288 |
|---|---|
| MPN | OR1000ERM1U |
