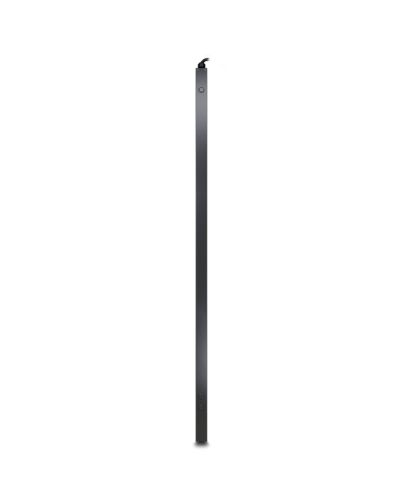

APC AP8853 power distribution unit (PDU) 42 AC outlet(s) 0U Black
£835.08
APC AP8853, Metered, 0U, Single-phase, Vertical, Black, 42 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with -time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
Design
PDU types*
Metered
Type
Single-phase
Rack capacity*
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
42 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Input connection type
IEC 309 32A 2P+E
Output connections
36x IEC 320 C13
6x IEC 320 C19
Features
Cable length
3 m
Management features
Monitoring
Current, Power, Voltage
Power
AC input frequency
50 - 60 Hz
Nominal output voltage
230 V
Load capacity
7680 VA
Power
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Maximum power
7680 W
Certificates
Certification
RoHS, REACH
IEC 60950,VDE
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
56 mm
Depth
44 mm
Height
1791 mm
Weight
6.93 kg
Logistics data
Total carbon footprint (kg of CO2e)
28921.23
Additional Information
| EAN/UPC | 731304277019 |
|---|---|
| MPN | AP8853 |
| BRAND | APC |
