B-Tech SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment
£415.80
B-Tech SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment, Ceiling, 70 kg, Black, 45°, 5°, -10 - 20°
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

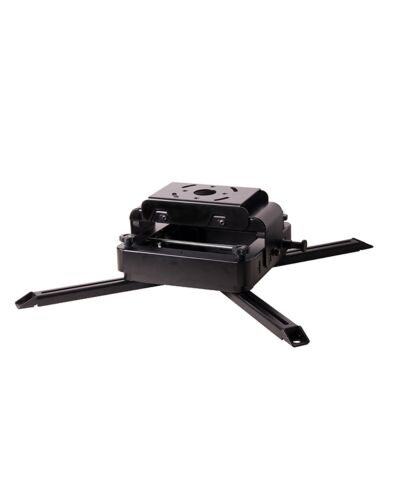

Designed to mount projectors up to 70kg, the BT893 heavy duty projector mount can be fixed directly to the ceiling or can be mounted to any Ø50mm B-Tech pole. Easy adjustment of tilt, yaw and roll, with additional micro-adjustment at each corner makes alignment of projections quick and simple. The projector fixes to a mounting plate that can be extended to accommodate larger fixing patterns using the included extension legs, making the BT893 ideal for large scale and precision applications such as events and staging or for edge-blending and projection mapping.
Key Features
- Designed to mount heavy duty projectors to the ceiling
- Features easy, incremented tilt adjustment
- Micro-adjustment thumbwheels at 4-points for controlled and precise adjustment of the projector
- Ideal for use with projection mapping projectors
- Quick and easy assembly
- Can be mounted to the ceiling directly or to any B-Tech Ø50mm pole
- Optional extension legs can be used to accommodate larger fixing patterns
- Suitable for projectors using M6, M8, M10 and M12 fixings
- All mounting hardware included
Specifications
Performance
Mounting type*
Ceiling
Maximum weight capacity*
70 kg
Product colour*
Black
Swivel angle
45°
Angle of rotation
5°
Tilt angle range
-10 - 20°
Weight & dimensions
Width
790.4 mm
Weight & dimensions
Height
163 mm
Depth
790.4 mm
Logistics data
Products per master (outer) case
1 pc(s)
Master (outer) case net weight
11.5 kg
Harmonized System (HS) code
83024200
Additional Information
| EAN/UPC | 5019318759819 |
|---|---|
| MPN | BT893/B |
| BRAND | B-Tech |
