Networking Equipments

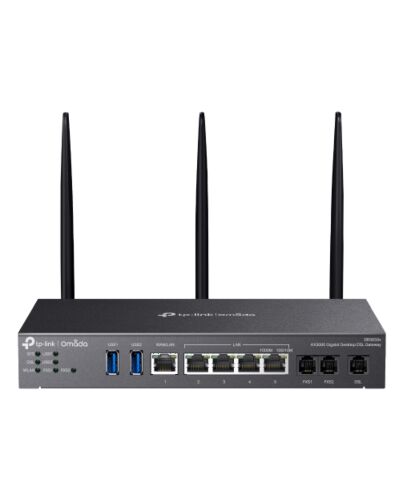

TP-Link Omada AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
£244.45
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Key Features
- VDSL2 35b: Supports 350Mbps DSL Access*2
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- Centralized Cloud Management
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Between DSL and Ethernet WAN
- Omada Mesh Technology*3
- Desktop/Wall Mounting
Specifications
WAN connection
Ethernet WAN*
Yes
DSL WAN*
Yes
SIM card slot*
No
3G/4G USB modem compatibility*
Yes
WAN connection type
RJ-45
Wireless LAN features
Wi-Fi band*
Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)*
2402 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)
574 Mbit/s
WLAN data transfer rate (second band)
2402 Mbit/s
Network
Ethernet LAN*
Yes
Ethernet LAN interface type*
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering
Yes
Load balancing system
Yes
Dynamic DNS (DDNS)
Yes
Policy-based routing
Yes
Static route
Yes
Built-in FTP server
Yes
VPN support
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
DSL features
ADSL
Yes
ADSL2
Yes
ADSL2+
Yes
VDSL2
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
4
USB port*
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
RJ-11 ports quantity
3
DC-in jack
Yes
Management features
Web-based management
Yes
Quality of Service (QoS) support
Yes
Reset button
Yes
MU-MIMO technology
Yes
Security
Security algorithms
WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access
Yes
Access Control List (ACL)
Yes
Security
URL filtering
Yes
System event log
Yes
DMZ support
Yes
Network address translation (NAT)
Yes
NAT functionality
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering1
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Protocols
DHCP client
Yes
DHCP server
Yes
Universal Plug and Play (UPnP)
Yes
Voice codecs
G.711a, G.711ulaw, G.722, G.726, G.729ab
Design
Product colour
Black
Wall mountable
Yes
Indication light
Yes
LED indicators
DSL, LAN, USB, WLAN
Product type*
Tabletop router
Packaging content
Cables included
LAN (RJ-45), Phone
AC adapter included
Yes
Antenna included
Yes
Antenna
Antenna design*
External
Antenna gain level (max)
4.5 dBi
Antennas quantity
3
Detachable antenna(s)
Yes
Features
Internal memory
512 MB
Internal memory type
DDR4
Mean time between failures (MTBF)
671034 h
Power
Power source type*
AC
Output voltage
12 V
Output current
3.3 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
226 mm
Depth
131.2 mm
Height
35 mm
Additional Information
| EAN/UPC | 8885020626766 |
|---|---|
| MPN | DR3650V |
