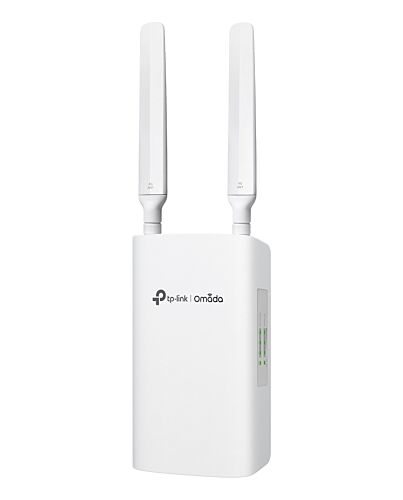

TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s
£244.54
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
All-in-one Device
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
Key Features
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
Specifications
Design
Product colour*
White
Mounting type
Wall mounting
LED indicators
Status
Features
Antenna type
External
Antenna gain level (max)
4 dBi
Antennas quantity
2
Short Message Service (SMS)
Yes
Performance
Control display unit*
No
Internal memory
512 MB
Internal memory type
DDR4
Flash memory
256 MB
Protocols
DHCP server
Yes
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Forwarding rate
1453489 Mpps
Networking standards
IEEE 802.3at, IEEE 802.3bt
Wi-Fi
Yes
Mobile network generation
4G
Data network
LTE
Downlink/uplink speed
300/50 Mbit/s
GSM bands supported
850,900,1800,2100 MHz
Frequency band
2.4/5 GHz
All services ready time
3.8 s
SSL VPN throughput
0.0866 Gbit/s
Network
PPTP/L2TP VPN tunnels (max)
50
SSL VPN tunnels (max)
50
Security
MAC address filtering
Yes
Security algorithms
SSID, WPA2, WPA3
Ports & interfaces
SIM card slot
Yes
SIM card type
NanoSIM
DC-in jack
Yes
Management features
Web-based management
Yes
Power
Power consumption (max)
16.6 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
174 mm
Depth
100.4 mm
Height
38.7 mm
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 90%
Certificates
Certification
CE, FCC, RoHS
Additional Information
| EAN/UPC | 1210002608442 |
|---|---|
| MPN | ER703WP-4G-OUTDOOR |
