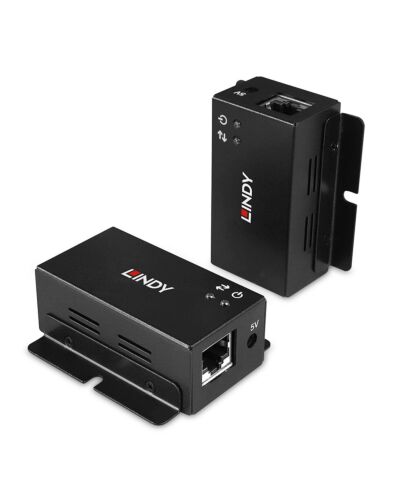

Lindy 50m 2 Port USB 2.0 Cat. 6 Extender
£111.71
Lindy 50m 2 Port USB 2.0 Cat. 6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5e, Cat6, NS1021, Black
In stock
Product Details
Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Key Features
- Extend 2 USB 2.0 ports up to 50m using low cost Cat.6 network cable (not included)
- Bi-directional PoC (Power over Cable) requires a power supply connection f only one side of the installation
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 year warranty
Specifications
Performance
Type*
Network transmitter & receiver
Maximum transfer distance*
50 m
Data transfer rate
480 Mbit/s
Cable types supported
Cat5e, Cat6
Chipset
NS1021
Plug and Play
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
USB 2.0 ports quantity
3
DC-in jack
Yes
RJ-45 input ports
1
RJ-45 output ports
1
Design
Product colour
Black
Quantity per pack
1 pc(s)
Power
Input current
2 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-40 - 125 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Transmitter width
6.02 cm
Transmitter depth
6.7 cm
Transmitter height
2.37 cm
Transmitter weight
195 g
Receiver width
6.02 cm
Receiver depth
6.7 cm
Receiver height
2.6 cm
Receiver weight
195 g
Packaging content
Cables included
USB
Manual
Yes
AC adapter included
Yes
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
Additional Information
| EAN/UPC | 4002888433860 |
|---|---|
| MPN | 43386 |
| BRAND | Lindy |
