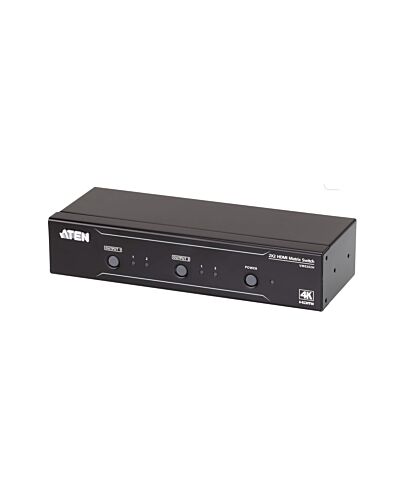

ATEN 2x2 4K HDMI Matrix Switch, up to 15m
£204.52
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x 0AD6-1006-26EG Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x User Instructions
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x 0AD6-1006-26EG Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x User Instructions
Key Features
- Connects 2 HDMI sources to any 2 HDMI displays
- HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
- Supports computer and video resolutions up to 4K
- Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
- Supports long distance transmission at a distance up to 15 meters
- Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert — Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro HDMI cable lock for securing HDMI cable connections
- All- metal casing
- upgradable
- Rack mountable
Specifications
Features
Product type*
AV matrix switcher
Data transfer rate
10.2 Gbit/s
Maximum pixel clock
340 MHz
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
1.4
3D
Yes
upgradeable
Yes
Extended display identification data (EDID)
Yes
Supported resolutions
4096 x 2160, 3840 x 2160
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
Control type
Buttons
LED indicators
Yes
Remote control included
Yes
Display
Built-in display*
No
Ports & interfaces
HDMI input ports quantity
2
HDMI output ports quantity
2
USB connector type
Micro-USB
USB ports quantity
1
RS-232 ports
1
DC-in jack
Yes
Power
Power consumption (typical)
4.3 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Products per master (outer) case
5 pc(s)
Master (outer) case gross weight
5.33 kg
Master (outer) case length
325 mm
Master (outer) case width
250 mm
Master (outer) case height
175 mm
Master (outer) case net weight
4.2 kg
Harmonized System (HS) code
85299097
Weight & dimensions
Width
200 mm
Depth
76 mm
Height
42 mm
Weight
840 g
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
980 g
Packaging content
Rack mount kit
Yes
Manual
Yes
AC adapter included
Yes
IR receiver included
Yes
Additional Information
| EAN/UPC | 4719264645501 |
|---|---|
| MPN | VM0202H |
| BRAND | ATEN |
