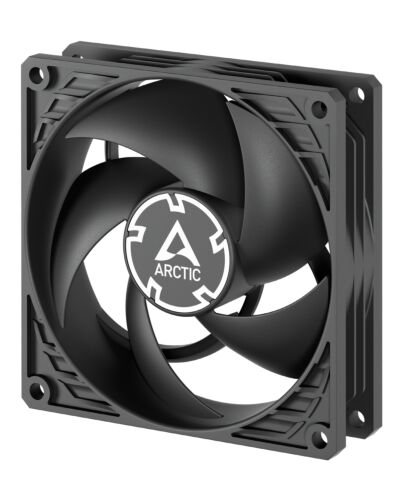

ARCTIC P9 Max (Black) - 92 mm High-Speed PWM Fan

Name: ARCTIC P9 Max (Black) - 92 mm High-Speed PWM Fan
Brand: ARCTIC
SKU: MAZ-0000022550
Price: 5.45 GBP
Availability: InStock

Be the first to review this product

£5.45

ARCTIC P9 Max (Black) - 92 mm High-Speed PWM Fan, Fan, 9.2 cm, 98.97 m³/h, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes f 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Reasons To Buy

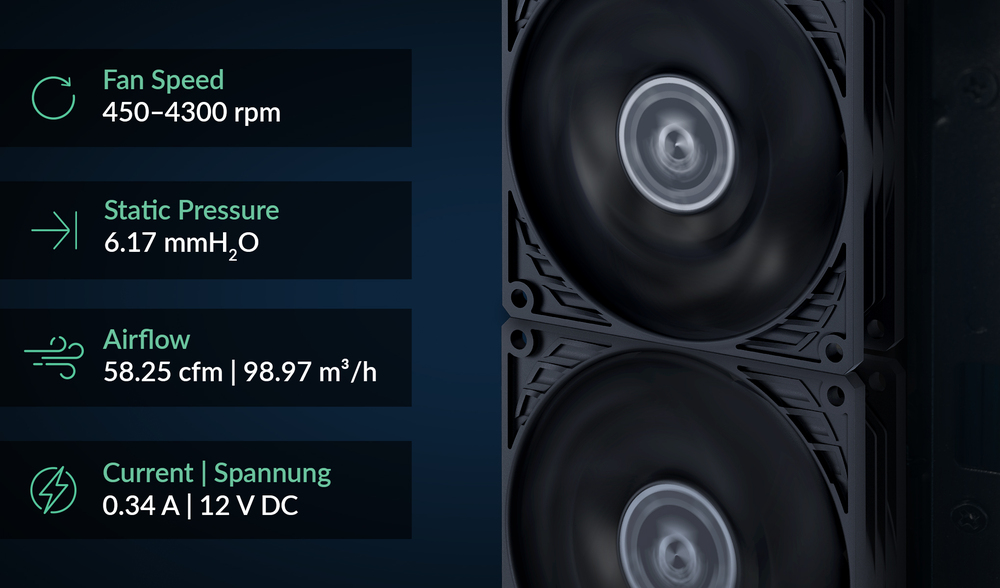

Powerful Cooling

The P9 Max is a powerful 92 mm fan with 450 to 4300 rpm.The fan delivers a static pressure of 6.17 mmH2O and generates an airflow of up to 58.25 cfm. It offers precise control of the fan speed via pulse width ulation (PWM) and is highly efficient at 0.34 A. In addition, it has a 0 dB e for silent operation in IDLE.

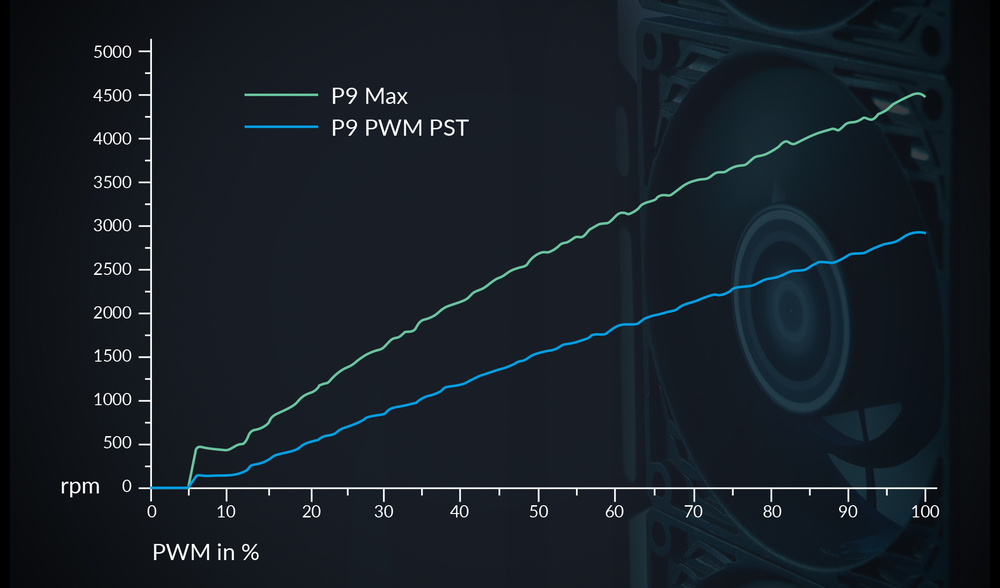

Extremely Wide Speed Range

The P9 Max enables precise fan speed via pulse width ulation control, which can be adapted to the individual cooling requirements. The P9 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

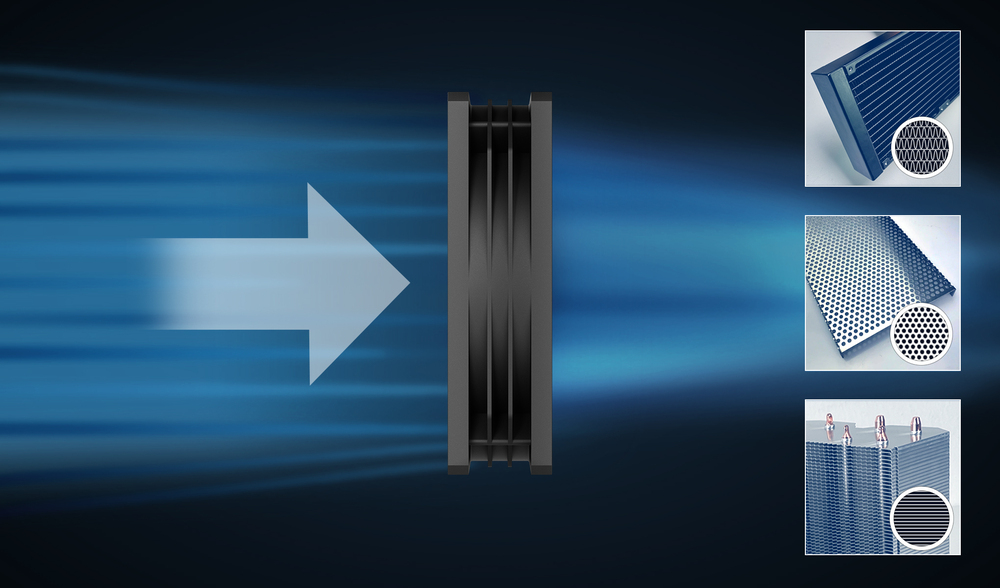

Optimised for High Static Pressure

The P9 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.

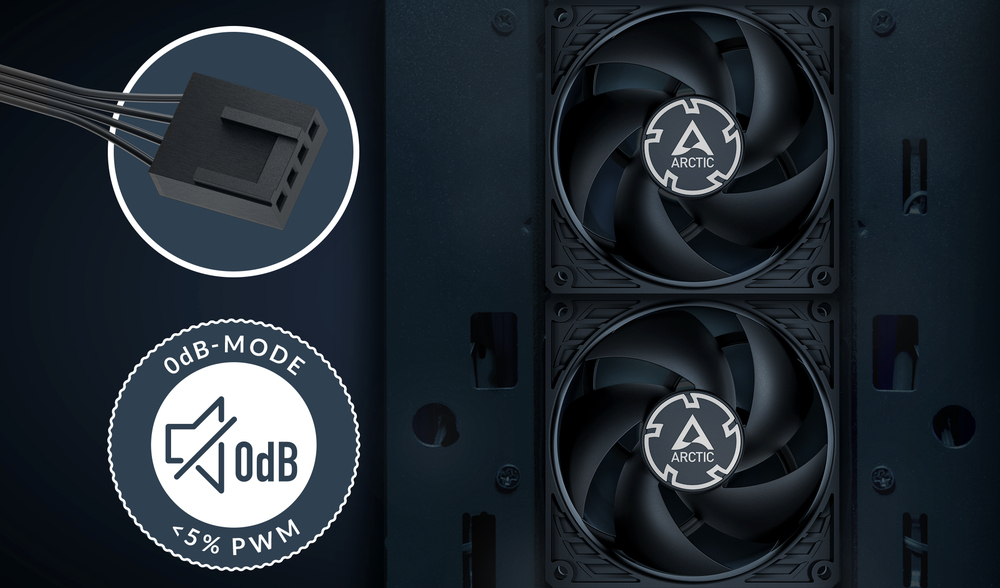

0 dB e - Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

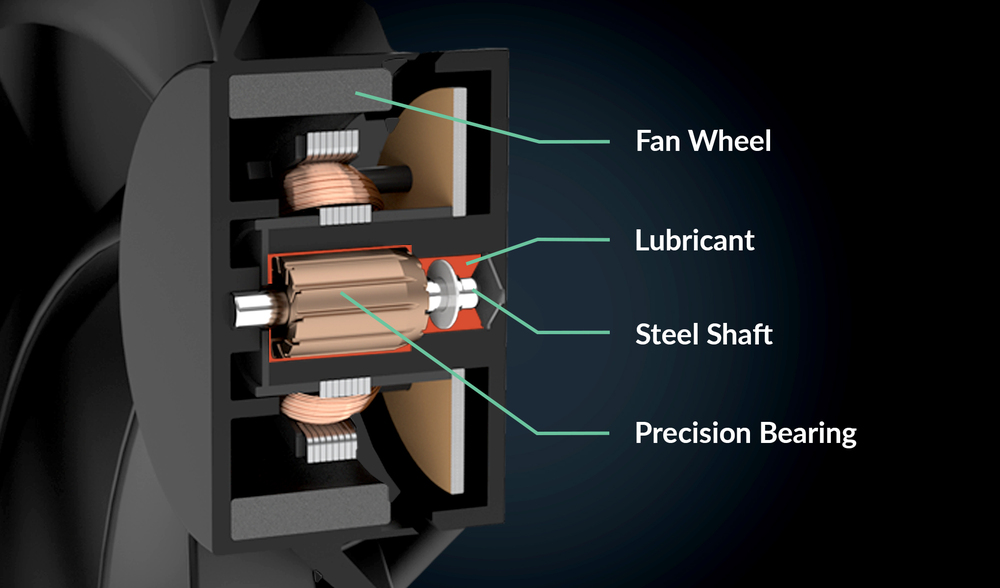

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P9 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

9.2 cm

Maximum airflow

58.25 cfm

Airflow

98.97 m³/h

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Fan speed (min)

450 RPM

Fan speed (max)

4300 RPM

Fan static pressure

6.17 mmH2O

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Number of fans

1 fan(s)

Power

Starting voltage

5 V

Fan voltage

12 V

Fan current

0.34 A

Weight & dimensions

Weight

105 g

Fan dimensions (W x D x H)

92 x 92 x 25 mm

Cable length

0.4 m

Package width

96 mm

Package depth

96 mm

Package height

27 mm

Package weight

124 g

Packaging content

Package type

Box

Additional Information

More Information
EAN/UPC	4895213705035
MPN	ACFAN00300A
BRAND	ARCTIC
