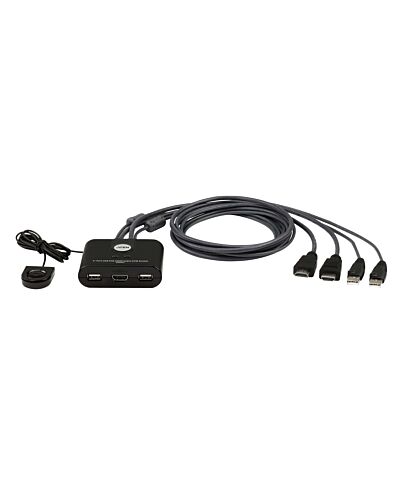

ATEN 2-Port USB FHD HDMI Cable KVM Switch
£52.39
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers f a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
Key Features
- One KVM console controls two computers with USB and HDMI interface
- Superior video quality & up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz
- Computer selection via Remote Port Selector
- HDMI compliant; HDCP 1.4 compliant
- Multiplatform support – Windows, Mac, and Linux
- The console USB ports can be used for USB peripheral sharing
- Supports USB hot-plugging
- Bus-powered
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
1
Console ports*
HDMI, USB A
USB connector type
USB Type-A
DC-in jack
Yes
Performance
HD type*
Full HD
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
HDCP
Yes
Design
Rack mounting*
No
Product colour*
Black
Housing material
Plastic
Cable length
1.2 m
Remote switch cable length
1.8 m
LED indicators
Yes
Display
Built-in display*
No
Power
Input voltage
5 V
Power consumption (typical)
1.518 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
66.5 mm
Depth
82.4 mm
Height
25.2 mm
Weight
260 g
Packaging data
Package width
55 mm
Package depth
155 mm
Package height
223 mm
Package volume
1982.18 cm³
Package weight
360 g
Package type
Box
Packaging content
Packaging content
1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch
1x user instructions
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
328 mm
Master (outer) case length
389 mm
Master (outer) case height
330 mm
Master (outer) case gross weight
7.9 kg
Master (outer) case volume
42192.1 cm³
Products per master (outer) case
20 pc(s)
Country of origin
Taiwan
Additional Information
| EAN/UPC | 4710469341304 |
|---|---|
| MPN | CS22HF |
| BRAND | ATEN |
