Lindy 100m USB 2.0 Type C Cat.6 Extender
£94.40
Lindy 100m USB 2.0 Type C Cat.6 Extender, Network transmitter & receiver, 100 m, 480 Mbit/s, Cat5e, Cat6, CH317Q, CH9317, RTL8211E, Black
In stock
Product Details
Description

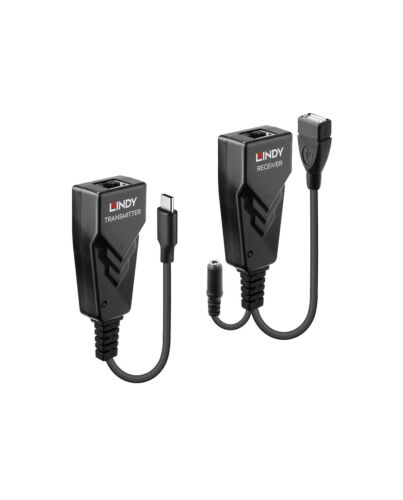

The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.
It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.
It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.
Key Features
- Extends a single USB Type C port up to 100m using Cat.5e/6 network cable (not included)
- Plug and Play installation, OS independent
- Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- 2 year warranty
Specifications
Performance
Type*
Network transmitter & receiver
Maximum transfer distance*
100 m
Data transfer rate
480 Mbit/s
Cable types supported
Cat5e, Cat6
Chipset
CH317Q, CH9317, RTL8211E
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
USB Type-C ports quantity (transmitter)
1
USB Type-C ports quantity (receiver)
1
DC-in jack
Yes
Design
Product colour*
Black
Housing material
Plastic
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Operational conditions
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
69 mm
Depth
36 mm
Height
22 mm
Weight
50 g
Packaging content
Manual
Yes
AC adapter included
Yes
Packaging data
Package type
Box
Package width
200 mm
Package depth
200 mm
Package height
48 mm
Package volume
380 cm³
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
Additional Information
| EAN/UPC | 4002888433907 |
|---|---|
| MPN | 43390 |
| BRAND | Lindy |
