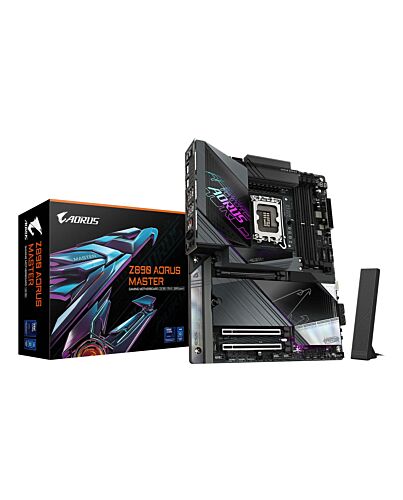

GIGABYTE Z890 AORUS MASTER Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, Thunderbolt 4
£501.34
GIGABYTE Z890 AORUS MASTER Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 phases VRM, up to 9500MHz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features
- Digital 18+1+2+1 Phases 110A SPS VRM with Tantalum Polymer Capacitor
- Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
- PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
- Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
- Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design
- 10GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
- AORUS Exclusive DDR Cooling kit: DDR Wind Blade
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Maximum internal memory supported by processor
256 GB
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
5600,5800,6000,6200,6400,6600,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz
Supported memory clock speed (max)
9500 MHz
Maximum internal memory*
256 GB
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
9
Number of storage drives supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Total number of SATA connectors
4
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
6
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
DisplayPorts quantity
2
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE200
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel Z890
Audio output channels*
5.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 11 x64
Expansion slots
Number of M.2 (M) slots
5
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.51 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
2.19 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331864903 |
|---|---|
| MPN | Z890 AORUS MASTER |
| BRAND | Gigabyte |
