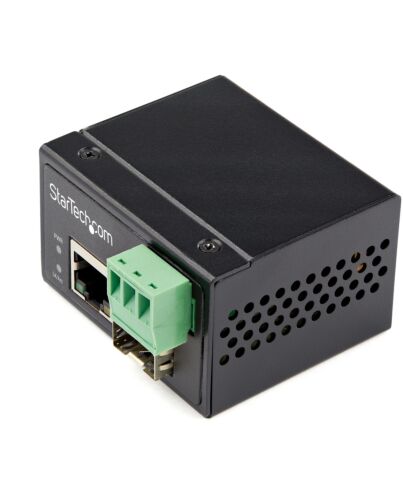

StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlee/Multi
£94.86
StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlee/Multie Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C, 100 Mbit/s, 10Base-T, 100Base-TX, 100Base-FX, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Full, Multi-e, Single-e
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated"
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated"
Key Features
- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated
- Rugged IP-30 aluminum housing
- Hardened operating temp -40C to 75C
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multie or single e fiber connections; easy deployment across applications, fiber distances or fiber cable types
Specifications
Network
Maximum data transfer rate*
100 Mbit/s
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Jumbo frames support
Yes
Jumbo frames
16000
Duplex system
Full
Performance
Fiber e structure
Multi-e, Single-e
Mean time between failures (MTBF)
500000 h
Features
Internal*
No
LED indicators
Yes
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SFP
Power
Input voltage
12 - 56 V
Power consumption (typical)
1.92 W
Power over Ethernet (PoE)
No
Power plug type
Type N
Weight & dimensions
Width
36 mm
Depth
59 mm
Height
50 mm
Weight
81.4 g
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Packaging content
User guide
Yes
Packaging data
Package width
155 mm
Package depth
105 mm
Package height
64 mm
Package weight
242.4 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 0065030889667 |
|---|---|
| MPN | IMC100MSFP |
| BRAND | STARTECH |
