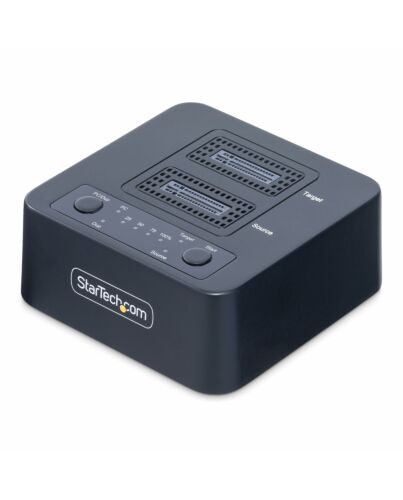

StarTech.com 1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included
£173.40
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
Key Features
- STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive
- M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally
- COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance
- COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk
- APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments
Specifications
Features
Product type*
HDD/SSD duplicator
Product colour
Black
Housing material
Plastic
Number of simultaneous copies*
1 copies
Interface*
USB 3.2 Gen 2 (3.1 Gen 2)
USB connector type
USB Type-C
Duplicator operating modes
Copy
Transfer rate
20000 MB/s
Transfer rate
90 GB/min
Hot-swap drive bays
No
Plug and Play
Yes
Chipset
JMS586U
Number of fans
1 fan(s)
Fan diameter
6 cm
LED indicators
Yes
Hard drive
SSD support
Yes
SSD interface
M.2
Power
Power consumption (typical)
0.1 W
AC input voltage
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
2 A
Power plug type
Type M
Included power plug types
ANZ, EU, NA, UK
Weight & dimensions
Dimensions (WxDxH)
77 x 77 x 44 mm
Weight
129 g
Packaging data
Package width
160 mm
Package depth
90 mm
Package height
95 mm
Package weight
140 g
Packaging content
Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C
AC adapter included
Yes
Manual
Yes
Operational conditions
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
5 - 55 °C
Storage temperature (T-T)
-20 - 55 °C
Sustainability
Sustainability compliance
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Master (outer) case length
338 mm
Master (outer) case width
500 mm
Master (outer) case height
220 mm
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 065030898003 |
|---|---|
| MPN | M2-HDD-DUPLICATOR-N1 |
