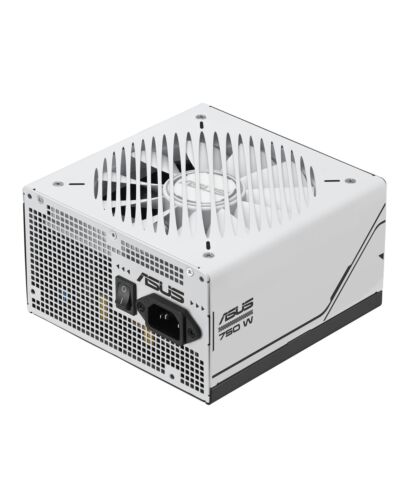

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White
£113.83
ASUS Prime AP-750G, 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
80 Plus Gold Certification
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Choose Your Style
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
8-year Warranty
We're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.
80 Plus Gold Certification
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Choose Your Style
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
8-year Warranty
We're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.
Key Features
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
Specifications
Power
Total power*
750 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
744 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Efficiency
92%
Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
5
SATA power cable length
120,400 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
150,400 mm
PCI Express power connectors (8-pin)
3
PCI Express power connectors (16-pin)
1
CPU P4 connector (4-pin)
2
CPU power connector (4+4 pin)
Yes
CPU power cable length
65 cm
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.0
Bearing technology
Ball bearing
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black, White
Cooling type
Active
On/off switch
Yes
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.47 kg
Packaging data
Package width
346 mm
Package depth
208 mm
Package height
144 mm
Package weight
2.88 kg
Package type
Box
Additional Information
| EAN/UPC | 4711387192962 |
|---|---|
| MPN | 90YE00U1-B0NA00 |
