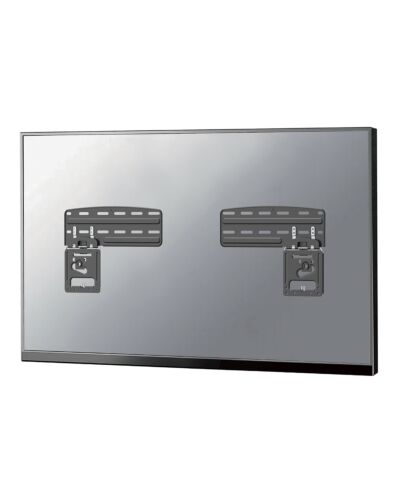

Neomounts WL30-265BL1 TV mount wall 43-85" Samsung screens - ultra-flat
£42.23
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.
The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.
* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:
-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC
2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)
2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000
For detailed compatibility, please refer to the online manual.
The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.
* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:
-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC
2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)
2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000
For detailed compatibility, please refer to the online manual.
Specifications
Mounting
Maximum weight capacity*
60 kg
Minimum screen size
109.2 cm (43")
Number of displays supported*
1
Maximum screen size*
2.16 m (85")
Minimum VESA mount*
150 x 100 mm
Maximum VESA mount*
1200 x 800 mm
Panel mounting interface
200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,900 x 600,200 x 100,300 x 100,1000 x 400,1000 x 600,460 x 640,800 x 800,300 x 900,1000 x 700,350 x 350,1200 x 600,400 x 200,1000 x 800,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,1600 x 600,700 x 400,500 x 500,150 x 200,800 x 450,200 x 150
Mounting type*
Wall
Ergonomics
Type
Fixed
Distance to the wall (max)
7.5 cm
Design
Product colour*
Black
Housing material
Steel
Technical details
Warranty period
5 year(s)
Features
Compatible products
- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC
2023 Samsung
- 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
- 50-85": The Frame (2021-2023)
2022 Samsung
- 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B
2021 Samsung
- 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
Weight & dimensions
Width
640 mm
Depth (max)
7.5 cm
Height
236 mm
Weight
1.2 kg
Packaging data
Package width
162 mm
Package depth
63 mm
Package height
363 mm
Package weight
1.6 kg
Logistics data
Master (outer) case width
350 mm
Master (outer) case length
345 mm
Master (outer) case height
380 mm
Master (outer) case gross weight
16.5 kg
Master (outer) case net weight
12 kg
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
7326909890
Products per pallet (EU)
243 pc(s)
Additional Information
| EAN/UPC | 8717371443900 |
|---|---|
| MPN | WL30-265BL1 |
| BRAND | NEOMOUNTS |
