Components

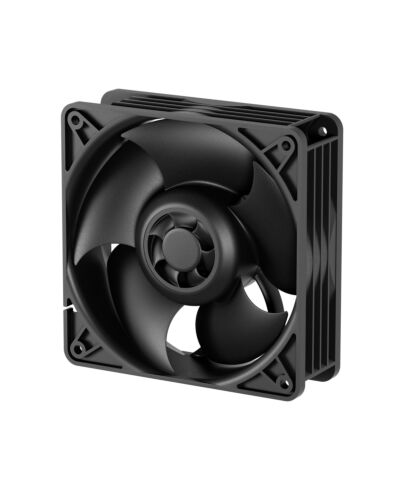

ARCTIC S12038-4K 120 mm 4k rpm Server Fan
£9.84
ARCTIC S12038-4K 120 mm 4k rpm Server Fan, Fan, 12 cm, 600 RPM, 4000 RPM, 180 m³/h, Black
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
Reasons To Buy
New Standard in Energy Efficiency
Test Setup
Fan on Freezer 4U heat sink on 400 W heating element; fan speed set so that the temperature of the heating element is constantly 20 °C above the ambient temperature.
Wide Range of Speeds (600 to 4000 rpm)
The S12038-4K features a wide range of speeds from 600 to 4000 rpm, which can be controlled either via PWM or voltage regulation.. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.Active Cooling for Extended Motor Lifespan
To ensure a long service life in particularly dusty environments, a sticker to cover the fan hub impeller is included in the packaging.
Ideal for Server Environments
Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-4K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.Ideal for Industrial Application
In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.High Airflow and Static Pressure
Designed for Continuous Operation
The impeller of the S12038-4K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.Quality You Can Rely On
70 °C ambient temperature, high dust exposure and changing humidity - we carry out our long-term tests under these extreme conditions to ensure the service life of our products. Some of these test fans have been running for over 15 years.This not only allows us to continuously improve our products, but the excellent test results also confirm our high manufacturing quality. We are happy to pass this assurance on to our customers and offer a 6-year manufacturer's warranty.
Specifications
Performance
Suitable location*
Computer case
Type*
Fan
Fan diameter
12 cm
Rotational speed (min)
600 RPM
Rotational speed (max)
4000 RPM
Maximum airflow
106 cfm
Airflow
180 m³/h
Maximum air pressure
11.45 mmH2O
Pulse-width modulation (PWM) support
Yes
Bearing type
Dual ball bearing
Quantity per pack
1 pc(s)
Operating temperature (T-T)
-10 - 70 °C
Design
Product colour*
Black
Fan connector
4-pin
Power
Rated voltage
12 V
Power
Starting voltage
3.1 V
Rated current
0.33 A
Maximum current
0.6 A
Weight & dimensions
Width
120 mm
Depth
120 mm
Height
38 mm
Weight
320 g
Cable length
0.3 m
Package width
125 mm
Package depth
125 mm
Package height
43 mm
Package weight
362 g
Packaging content
Screws included
Yes
Number of screws
4
Additional Information
| EAN/UPC | 4895213704694 |
|---|---|
| MPN | ACFAN00296A |
| BRAND | ARCTIC |
