Computer Cables

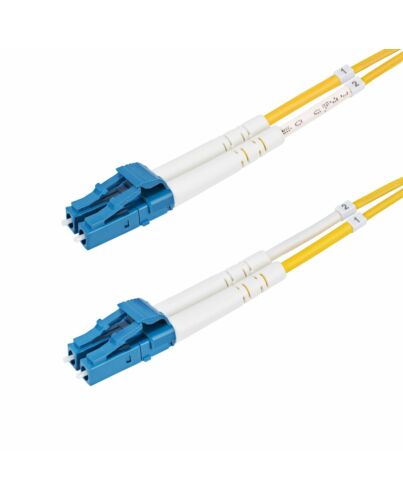

StarTech.com 30m (98.4ft) LC to LC (UPC) OS2 Single e Duplex Fiber Optic Cable, 9/125µm, 100G, Bend
£30.92
StarTech.com 30m (98.4ft) LC to LC (UPC) OS2 Single e Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord, 30 m, LC/UPC, OS2, LC, LC
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
OS2 LC to LC Single e Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel lation for optimal signal strength over long distances.
Compatibility
This 9/125µm Single e fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
OS2 LC to LC Single e Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel lation for optimal signal strength over long distances.
Compatibility
This 9/125µm Single e fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
Key Features
- OS2 FIBER CABLE: Single e OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel lation over long distances
- QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Numbered and color-coded connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Single e Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
- SPECS: 30 meter (98.4 foot); OS2 Single e; LC/LC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
Specifications
Features
Cable length*
30 m
Fibre optic type
OS2
Connector 1*
LC
Connector 2*
LC
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector polish type
UPC
Cable type*
LC/UPC
Product colour*
Yellow
Full duplex
Yes
Core diameter
9 µm
Cladding diameter
125 µm
Fiber e structure
Single-e
Wavelengths supported
1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
Data transfer rate
10 Gbit/s
Insertion loss
0.3 dB
Return loss
55 dB
Jacket material*
Low smoke zero halogen (LSZH), Polypropylene
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Cable diameter
2 mm
Bending radius
1 cm
Packaging data
Package width
200 mm
Package depth
220 mm
Package height
15 mm
Package weight
216.6 g
Packaging content
Quantity per pack
1 pc(s)
Other features
Attenuation (max)
0.35 dB/km
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
380 mm
Master (outer) case height
280 mm
Products per master (outer) case
32 pc(s)
Additional Information
| EAN/UPC | 0065030901802 |
|---|---|
| MPN | SMDOS2LCLC30M |
| BRAND | STARTECH |
