Networking
TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
£48.89
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

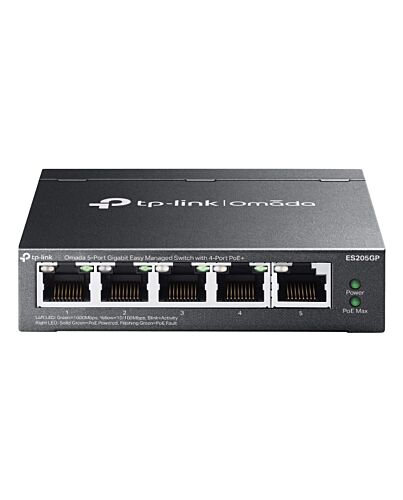

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port lation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port lation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Key Features
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port lation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
Management features
Switch type*
Managed
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
5
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support*
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max)
0.25 km
Data transmission
Switching capacity*
10 Gbit/s
Forwarding rate
7.4 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15
Packet buffer memory
4 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Design
Product colour
Black
Design
Reset button
Yes
LED indicators
Yes
Wall mountable
Yes
Performance
Fanless
Yes
Power
Power source*
AC/DC
Power supply included*
Yes
DC input voltage
53.5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
65 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
100 mm
Depth
98 mm
Height
25 mm
Packaging content
User guide
Yes
Packaging data
Package type
Box
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 8885020620948 |
|---|---|
| MPN | ES205GP |
| BRAND | TP-LINK |
