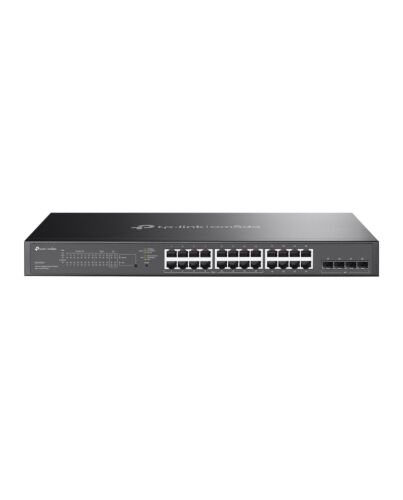

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
£229.46
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Key Features
- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
24
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
4
Network
Networking standards*
IEEE 802.3af, IEEE 802.3at
10G support*
No
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000
Data transmission
Switching capacity*
56 Gbit/s
Forwarding rate
41.66 Mpps
MAC address table*
8000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP relay, DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security
MAC address filtering
Yes
Password protection
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting*
Yes
Product colour
Grey
LED indicators
Yes
Performance
Fanless
Yes
Power
Power source*
AC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
184.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
150 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
628 BTU/h
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Additional Information
| EAN/UPC | 8885020620849 |
|---|---|
| MPN | SG2428LP |
| BRAND | TP-LINK |
