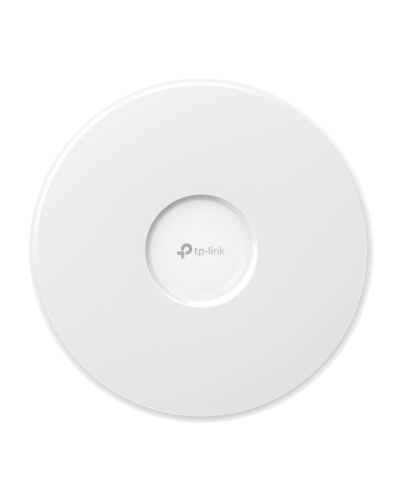

TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
£153.37
TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 9300 Mbit/s, SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,..., 2500 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ultra-Thin Enterprise WiFi 7 Access Point
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Key Features
- BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
- A clear 6 GHz band brings cleaner and wider band resources
- 1× 2.5G Port s the full potential of Wi-Fi 7
- 320 MHz bandwidth enables many more simultaneous transmissions
- Multi-Link Operation and Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, mesh, and AI roaming
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
Yes
Maximum data transfer rate*
9300 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
2880 Mbit/s
Maximum data transfer rate (6 GHz)
5760 Mbit/s
Ethernet LAN data rates
2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Number of users
380 user(s)
Bluetooth
Yes
Bluetooth version
5.2
MIMO
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Security
Security algorithms*
SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
24
Remote ation Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Management features
Web-based management
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Design
Placement*
Ceiling, Wall
Product colour*
White
LED indicators
Yes
Antenna
Antenna type*
Internal
Certificates
Certification
CE, FCC, RoHS, IC
Weight & dimensions
Width
220 mm
Depth
220 mm
Height
32.5 mm
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
No
Mounting kit
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Additional Information
| EAN/UPC | 8885020623062 |
|---|---|
| MPN | EAP772 |
| BRAND | TP-LINK |
