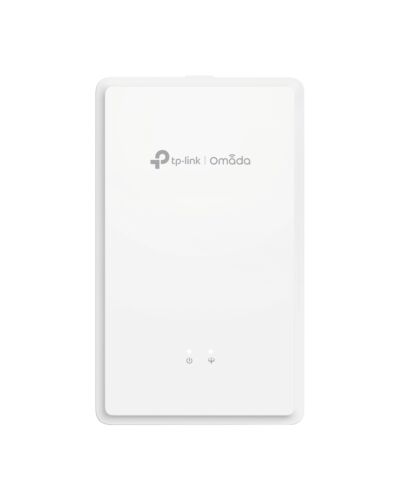

TP-Link Omada AX1800 1201 Mbit/s White
£118.52
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
- 1× GPON Port for High-Speed and Ultra-Range Access
- Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Smart O&M: PPSK△ and Multiple Portals§
- Centralized Management: Integrates with the Unified Optical Solution
- Wall-Mounted, AC Powered
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1201 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users
120 user(s)
Channel bandwidth
80 MHz
MIMO
Yes
MIMO type
Multi User MIMO
Spread spectrum method
OFDMA
Wi-Fi roaming
Yes
VLAN support
Yes
Rate limiting
Yes
Wireless lation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
21 dBm
Security
Security algorithms*
SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast on/off
Number of SSID supported
16
Remote ation Dial-In User Service (RADIUS)
Yes
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
0.5 A
Power consumption (typical)
12.2 W
Design
Placement*
Wall
Product colour*
White
Reset button
Yes
LED indicators
Power
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
6.5 dBi
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
CE, FCC, RoHS, IC
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
37.6 mm
Weight
320 g
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Additional Information
| EAN/UPC | 8885020620535 |
|---|---|
| MPN | EAP615GP-WALL |
| BRAND | TP-LINK |
