Computers
iiyama SDM31201BC-1L PC/workstation Intel® Core™ i3 i3-1220P 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC Black
£513.48
iiyama SDM31201BC-1L, Intel® Core™ i3, i3-1220P, 8 GB, 256 GB, Windows 11 IoT Enterprise, 64-bit
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

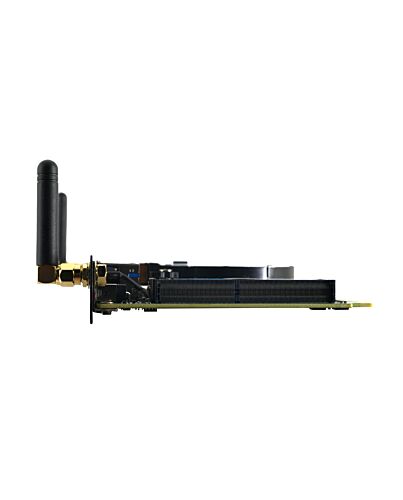

An Intel® i3 SDM-L slot PC with Windows® 11 which supports 4K (3840x2160) resolution
This mini SDM-L PC with an Intel® Core™ i3 processor turns your iiyama large format display from the ProLite LH54 Series and LH75 Series (50" and larger) into a stand-alone solution. It comes equipped with a powerful Intel® processor, integrated Ultra HD graphics, and a fast SSD. It features 4 USB3.2 Gen1 ports and 2 Type-C ports (USB3.2 + DP ALT).
This mini SDM-L PC with an Intel® Core™ i3 processor turns your iiyama large format display from the ProLite LH54 Series and LH75 Series (50" and larger) into a stand-alone solution. It comes equipped with a powerful Intel® processor, integrated Ultra HD graphics, and a fast SSD. It features 4 USB3.2 Gen1 ports and 2 Type-C ports (USB3.2 + DP ALT).
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel® Core™ i3
Processor generation
12th gen Intel® Core™ i3
Processor model*
i3-1220P
Processor cores
10
Processor threads
12
Performance cores
2
Efficient cores
8
Performance-core Max Turbo Frequency
4.4 GHz
Efficient-core Max Turbo Frequency
3.3 GHz
Processor cache
12 MB
Processor cache type
Smart Cache
Processor base power
28 W
Maximum turbo power
64 W
Memory
Internal memory*
8 GB
Internal memory type
DDR4-SDRAM
Storage
Total storage capacity*
256 GB
Storage media*
SSD
Optical drive type*
No
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
M.2
Graphics
Discrete graphics card*
No
On-board graphics card*
Yes
Discrete graphics card model*
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model*
Intel® UHD Graphics
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Network
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity*
2
HDMI ports quantity*
1
HDMI version
2.0
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Design
Chassis type*
Mini PC
Product colour*
Black
Performance
Product type*
Mini PC
Software
Operating system architecture
64-bit
Operating system installed*
Windows 11 IoT Enterprise
Power
Power consumption (typical)
72 W
Power consumption (standby)
0.5 W
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width*
110 mm
Depth*
195 mm
Height*
25 mm
Weight*
400 g
Package weight
610 g
Display
Display included*
No
Additional Information
| EAN/UPC | 4948570033348 |
|---|---|
| MPN | SDM31201BC-1L |
| BRAND | Iiyama |
