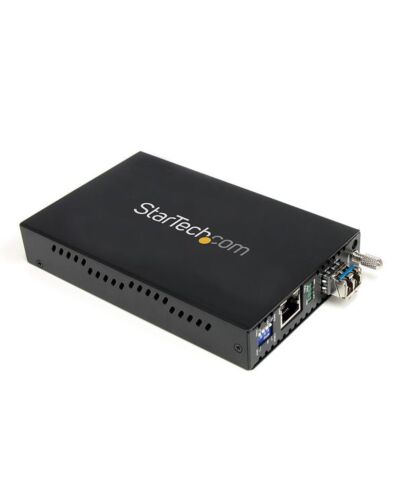

StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
£334.69
StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km, 2000 Mbit/s, 1000Base-T, 1000Base-LX, 1000Base-SX, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
Specifications
Network
Maximum data transfer rate*
2000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-LX, 1000Base-SX
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance*
40000 m
Wavelength*
1310 nm
Fiber mode structure
Single-mode
Mean time between failures (MTBF)
65000 h
Features
Internal*
No
Plug and Play
Yes
Product colour
Black
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
LC
DC-in jack
Yes
Power
Output voltage
12 V
Output current
1 A
Power
External power adapter
Yes
Weight & dimensions
Weight
620 g
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Manual
Yes
Packaging data
Package width
205 mm
Package depth
138 mm
Package height
89 mm
Package weight
754 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Other features
Dimensions (WxDxH)
95 x 160 x 20 mm
Full duplex
Yes
Additional Information
EAN/UPC | 0065030846066 |
---|---|
MPN | ET1000S40LC2 |
BRAND | STARTECH |
