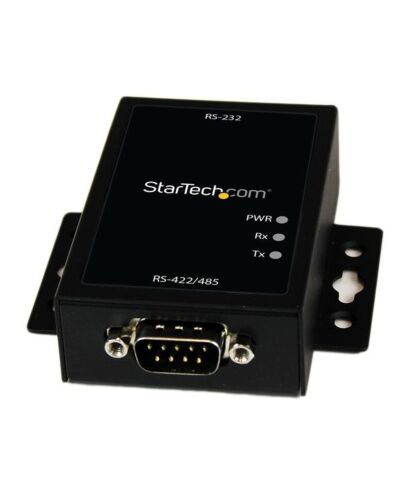

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
£68.62
StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection, 0 - 50 °C, -20 - 60 °C, 5 - 85%, 59 mm, 117 mm, 22 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
Specifications
Technical details
Host interface*
RS-232
Output interface
RS-232
Connector 1
DB-9
Connector 2
DB-9
Connector gender
Male/Female
Product colour
Black
Maximum cable length
1200 m
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Weight & dimensions
Width
59 mm
Depth
117 mm
Height
22 mm
Weight & dimensions
Weight
143 g
Package width
208 mm
Package depth
146 mm
Package height
41 mm
Package weight
351 g
Power
Input voltage
110 - 240 V
Input current
0.3 A
Material
Housing material
Steel
Certificates
Certification
CE, FCC, REACH
Packaging data
Manual
Yes
Additional Information
| EAN/UPC | 0065030852555 |
|---|---|
| MPN | IC232485S |
| BRAND | STARTECH |
