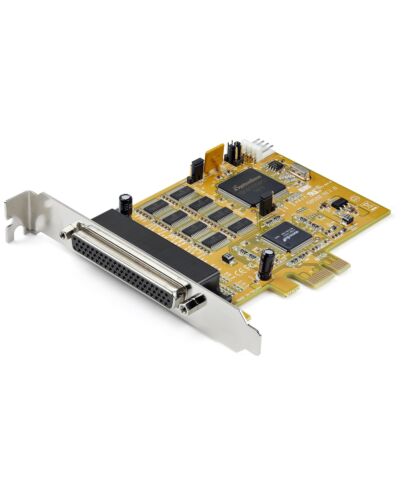

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Mul
£178.38
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and ems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and ems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
Key Features
- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
- WINDOWS ONLY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers
- VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
- TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatible; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; Supports Windows Only; None, Even, or Odd Parity es; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Bracket
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
Serial
Serial ports quantity
8
Serial interface type
RS-232
Design
Internal*
Yes
Product colour
Yellow
Maximum cable length
0.5 m
Mean time between failures (MTBF)
160013 h
Features
Chipset
ASMedia - ASM1083, System Base - SB16C1058PCI
Baud rate
921.6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8
Stop bits
1, 1.5, 2
Parity bit
Even, No, Odd
Flow Control type
RTS/CTS, XON/XOFF
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported
Yes
System requirements
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
16 mm
Depth
105 mm
Height
120 mm
Weight
74 g
Packaging data
Cables included
Serial
Quick installation guide
Yes
Package width
190 mm
Package depth
290 mm
Package height
65 mm
Package weight
672 g
Logistics data
Harmonized System (HS) code
84733020
Products per master (outer) case
14 pc(s)
Master (outer) case width
400 mm
Master (outer) case length
510 mm
Master (outer) case height
315 mm
Other features
Compliance industry standards
16C1050 UART
Additional Information
| EAN/UPC | 0065030888295 |
|---|---|
| MPN | PEX8S1050 |
| BRAND | STARTECH |
