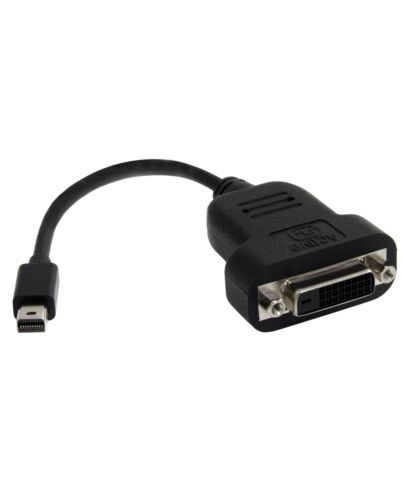

StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter -
£23.23
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Connect a DVI monitor to a single-e DisplayPort output f your computer
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-e DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-e DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features
- ACTIVE MINI DISPLAYPORT TO DVI ADAPTER: Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link adapter connects a DVI display/projector supporting 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display
- HOST COMPATIBILITY: Active video converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design / 5.7"" (15cm) attached cable / Supports Apple Cinema Display HD
- SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable f coming loose or accidental disconnection f DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable length*
0.12 m
Connector 1*
Mini DisplayPort
Connector 2*
DVI-D
Connector 1 gender*
Male
Connector 2 gender*
Female
HDCP
Yes
HDCP version
1.3
DisplayPort version
1.2
Dual Link DVI
No
Maximum resolution
1920 x 1200 pixels
Maximum refresh rate
60 Hz
Product colour
Black
Jacket material
Low smoke zero halogen (LSZH)
Plug and Play
Yes
Converter type
Active video converter
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
0 - 70 °C
Certificates
Compliance certificates
CE, RoHS
Weight & dimensions
Weight
38 g
Width
44 mm
Depth
200 mm
Height
20 mm
Packaging data
Package width
200 mm
Package depth
220 mm
Package height
19 mm
Package weight
47 g
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
495 mm
Master (outer) case length
339 mm
Master (outer) case height
220 mm
Products per master (outer) case
90 pc(s)
Additional Information
| EAN/UPC | 0065030842334 |
|---|---|
| MPN | MDP2DVIS |
| BRAND | STARTECH |
