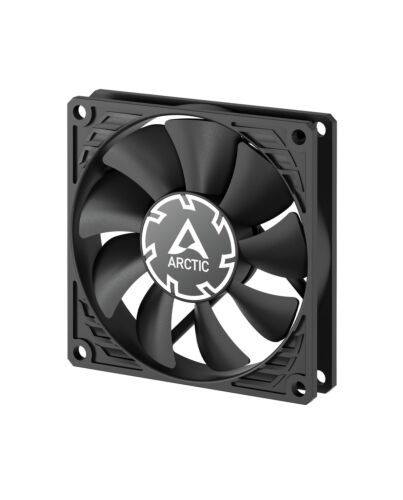

ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter

Name: ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter
Brand: ARCTIC
SKU: MAZ-0000014864
Price: 3.60 GBP
Availability: InStock

Be the first to review this product

£3.60

ARCTIC P8 Slim PWM PST - 80 mm Low-Profile PWM Fan with Cable Splitter, Fan, 8 cm, 38.23 m³/h, Black

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.

Reasons To Buy

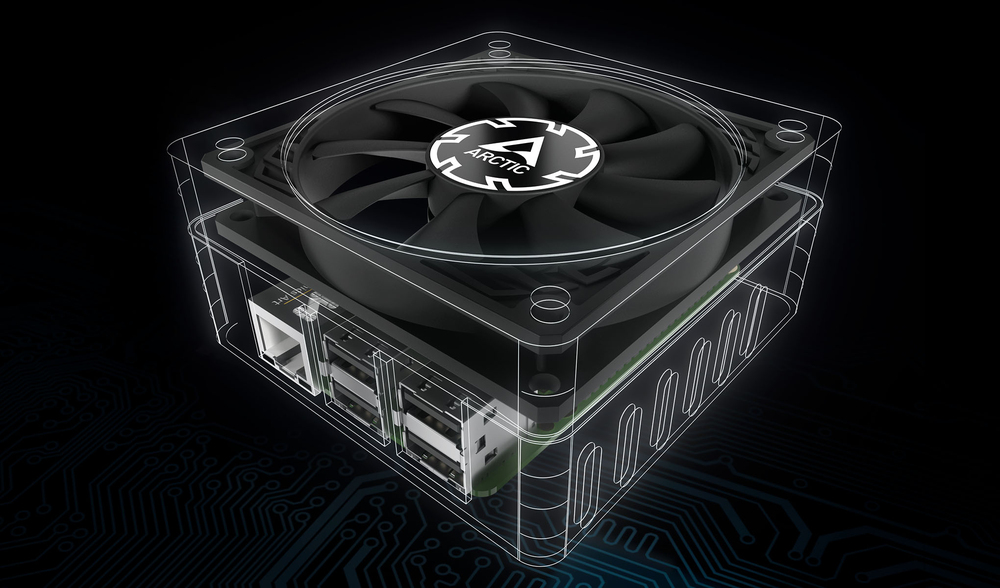

Optimal for HTPC, SBC and Slim Systems

Thanks to its low installation height of 15 mm and highly energy-efficient operation, the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.

300 to 3000 rpm Controlled via PWM PST

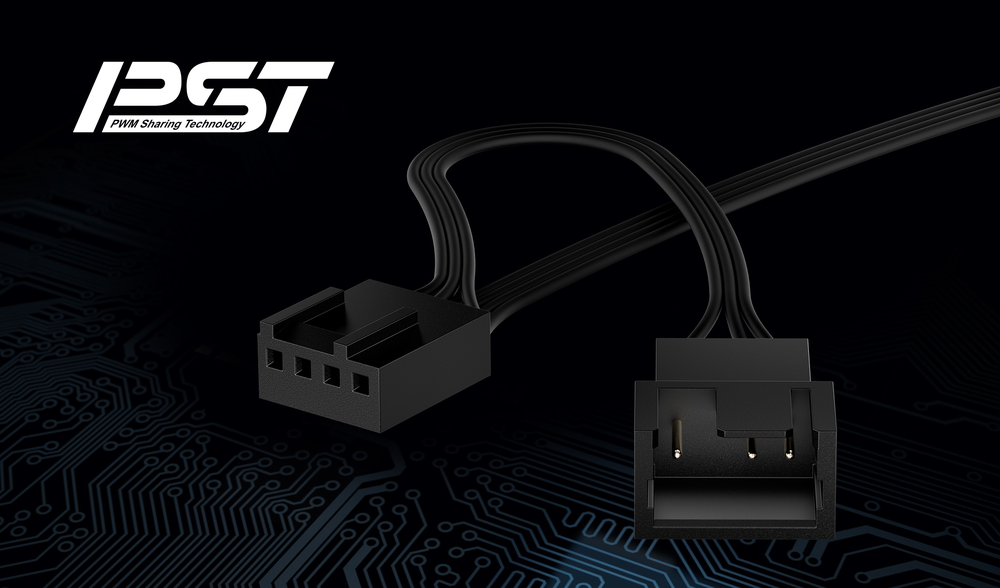

With a wide speed range and innovative PWM Sharing Technology (PST), the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

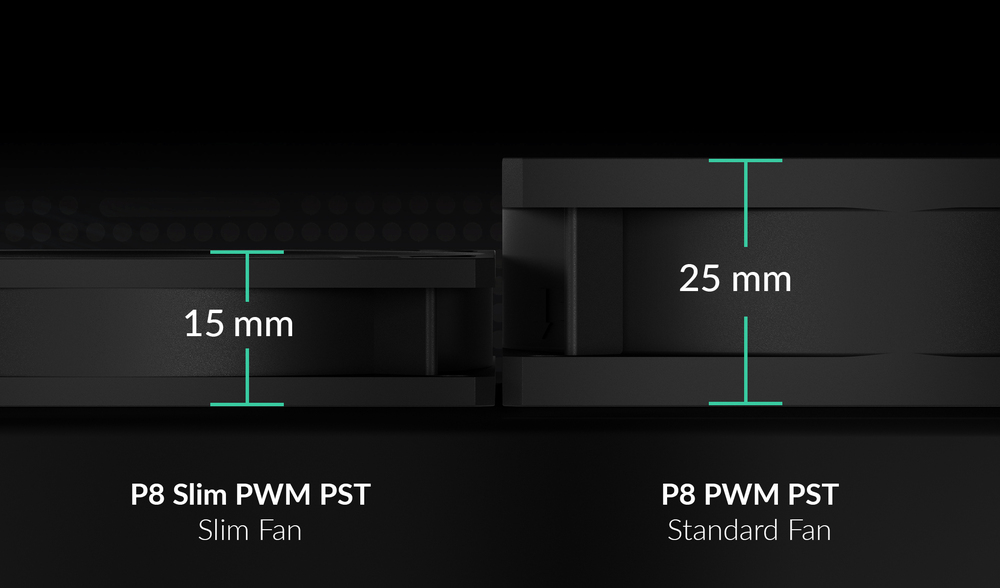

Ideal for Small Spaces

Unlike standard 80 mm case fans with a thickness of 25 mm, the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.

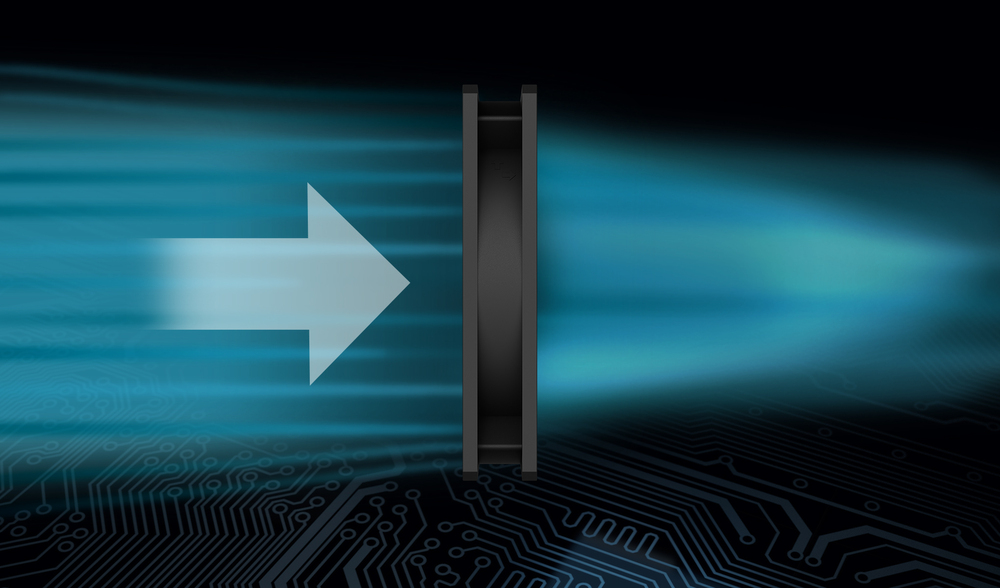

Optimised for High Static Pressure

Because the fan design of the P8 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

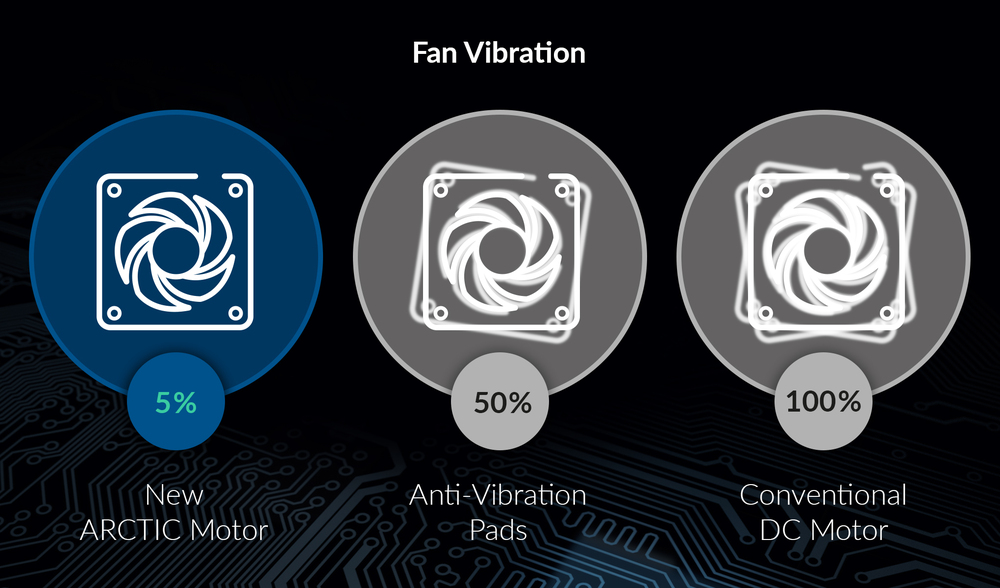

Maximum Smoothness, Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

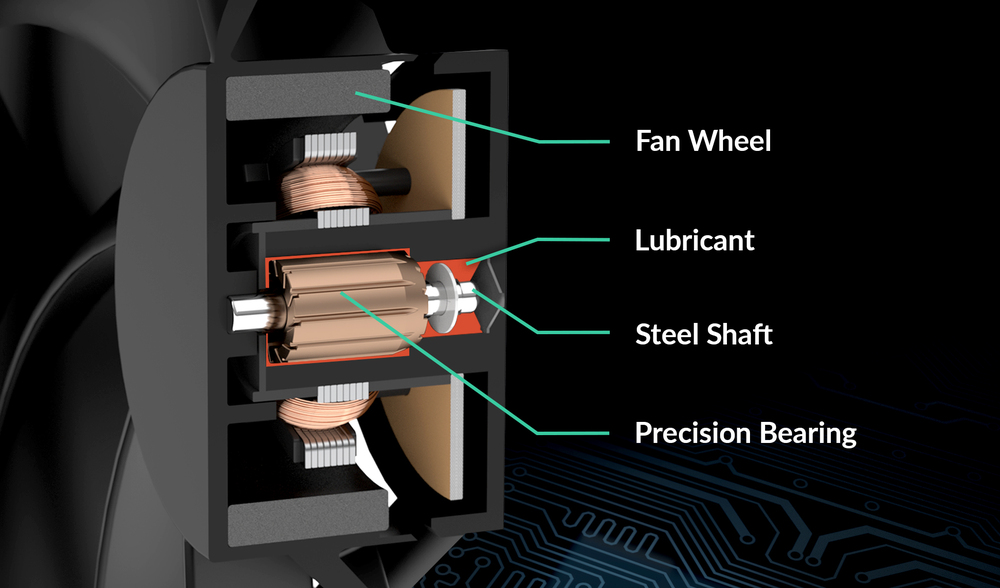

High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

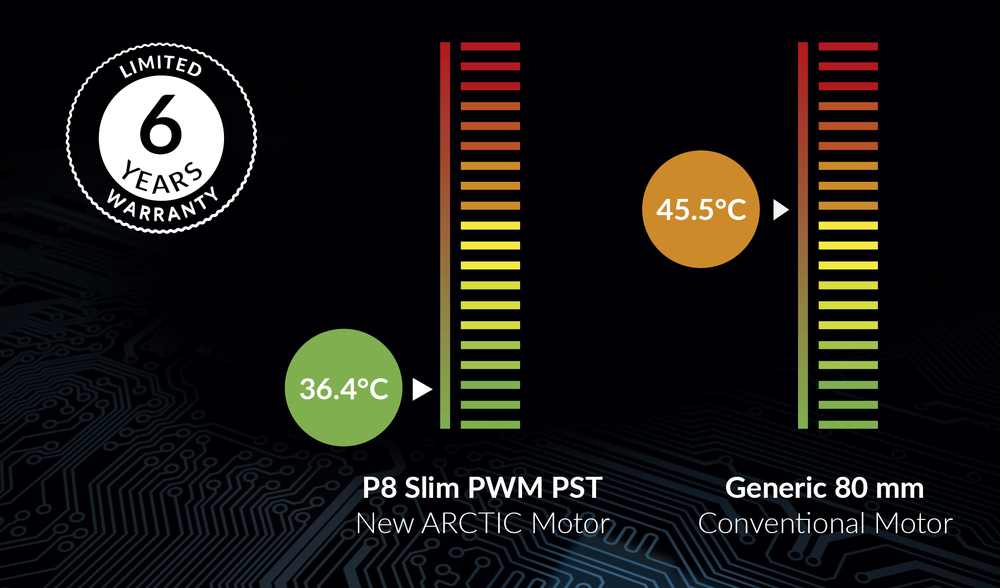

Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor els. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

8 cm

Maximum airflow

22.5 cfm

Airflow

38.23 m³/h

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Fan speed (min)

300 RPM

Fan speed (max)

3000 RPM

Fan static pressure

2.35 mmH2O

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Fan connector

4-pin + 4-pin

Power

Starting voltage

6.9 V

Fan voltage

12 V

Fan current

0.095 A

Weight & dimensions

Fan dimensions (W x D x H)

80 x 80 x 15 mm

Fan weight

45 g

Cable length

0.48 m

Package width

83 mm

Package depth

89 mm

Package height

17 mm

Package weight

67 g

Packaging content

Package type

Hanging box

Other features

Country of origin

Hong Kong

Additional Information

More Information
EAN/UPC	4895213704199
MPN	ACFAN00295A
BRAND	ARCTIC
