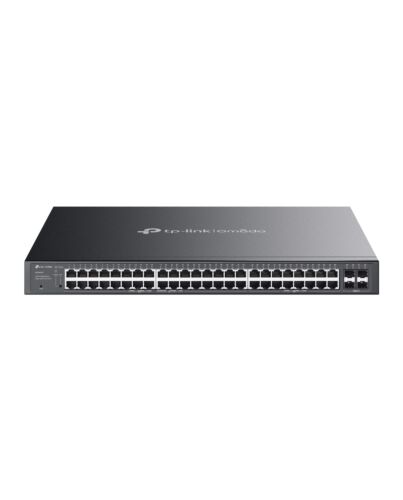

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
£488.89
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Power over Ethernet, Flexible Network Deployment
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all f a single interface.
Key Features
- 32× Gigabit 802.3af/at PoE+ ports
- 16× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
- 230 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
✓
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
48
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
4
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
10G support*
No
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Active link detection
Yes
VLAN support
Yes
Data transmission
Switching capacity*
104 Gbit/s
Forwarding rate
77.37 Mpps
MAC address table*
16000 entries
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Security
DHCP features
DHCP relay, DHCP server
Security
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
ation type
RADIUS
Design
Rack mounting*
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
304.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
32
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
230 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1035.4 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Additional Information
| EAN/UPC | 8885020620825 |
|---|---|
| MPN | SG2452LP |
| BRAND | TP-LINK |
