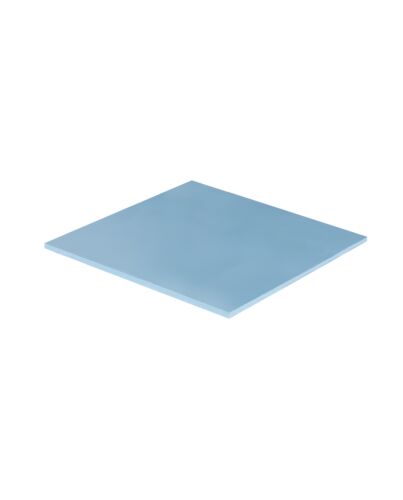

ARCTIC TP-3 Premium Performance Thermal Pad 100 x 100 mm, 1.5 mm

Be the first to review this product

£7.14

ARCTIC TP-3 Premium Performance Thermal Pad 100 x 100 mm, 1.5 mm, Thermal pad, Blue, 100 mm, 100 mm, 1.5 mm, 1 pc(s)

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

Ensure the lowest thermal resistance with our award-winning thermal interfaces. Well known for its outstanding quality, our high-performance MX thermal compound is a regular winner in performance tests. It offers a very low thermal resistance due to its minimum bond line thickness and is easy to apply, even for beginners. Thermal pads in various designs and sizes round out the product range.

Reasons To Buy

High Performance - very soft

Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

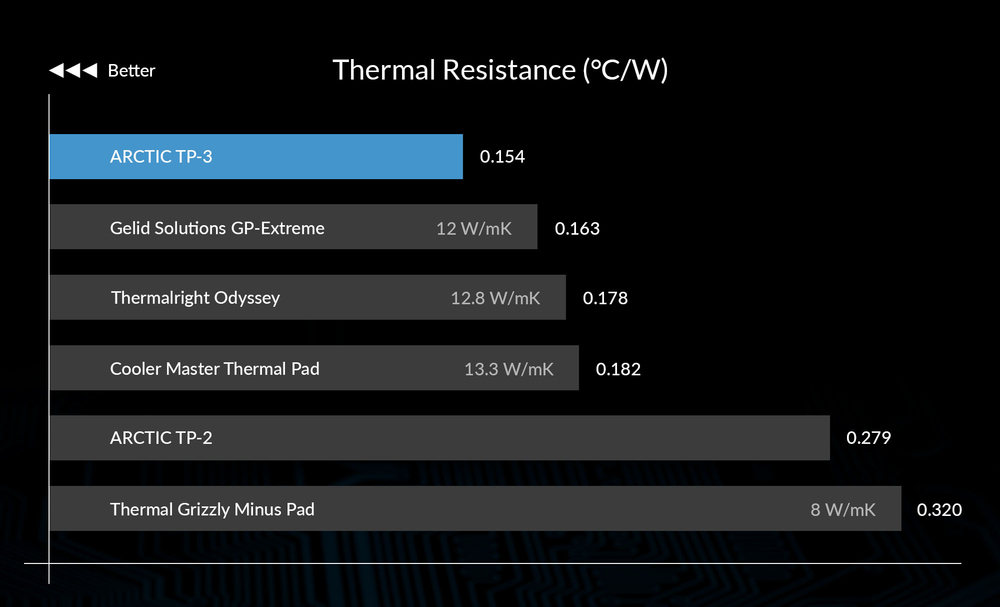

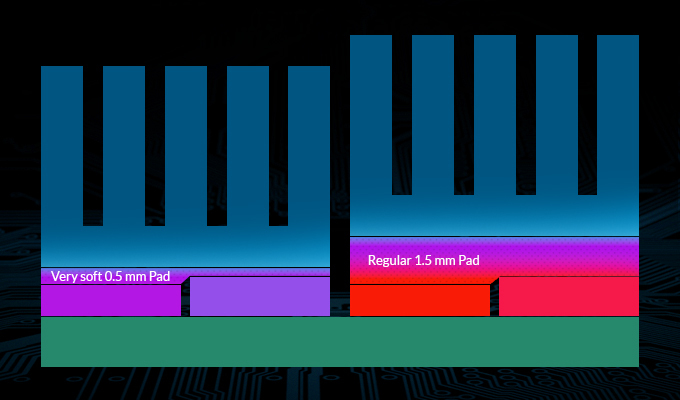

Minimization of thermal resistance

The thinner the pad, the lower the termal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

Versatile Applications

Heat-conducting, vibration-damping, mouldable, electrically insulating - safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards and electronic devices in general.

Safe handling

The ARCTIC TP-3 is electrically insulating, non-adhesive and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.

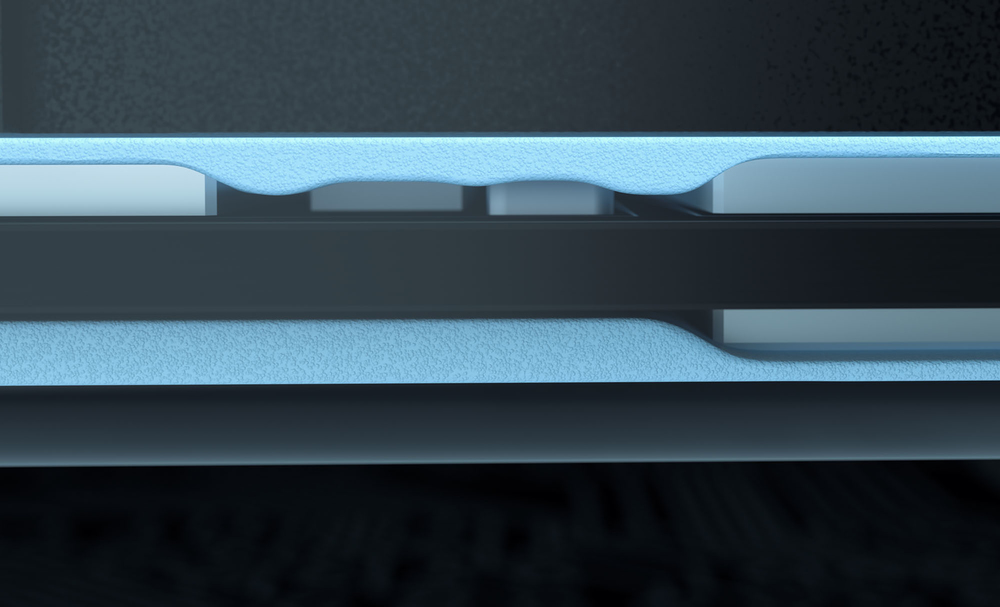

Bridging gaps

The TP-3 are softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridges uneven surface and air gaps without stressing sensitive and protruding components.

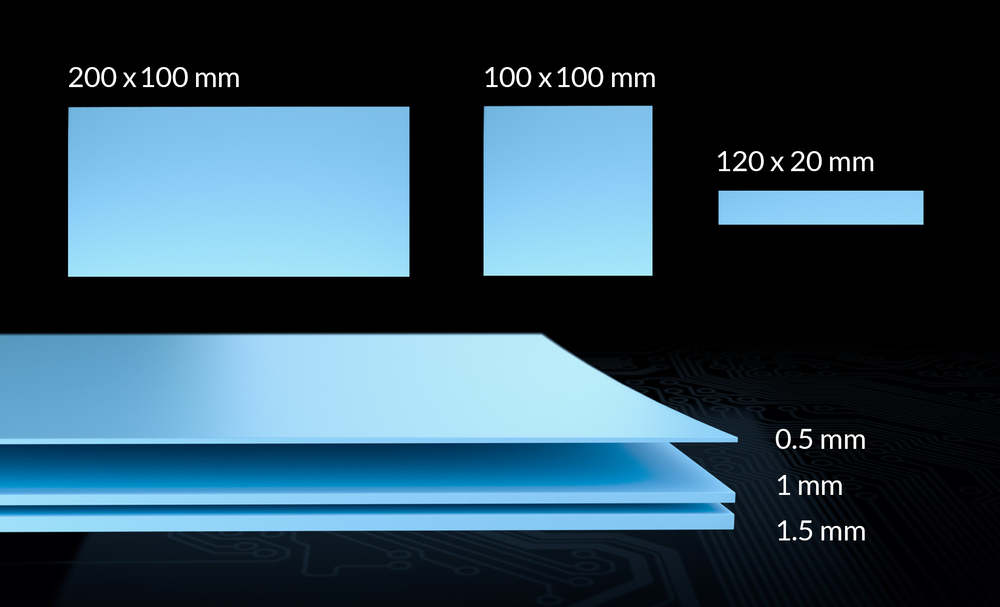

Available in different thicknesses and sizes

Our thermal pads are available in a choice of 0.5 mm, 1.0 mm and 1.5 mm. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads are available in different dimensions, depending on their thickness. If required, the pads can also be independently cut to any size.

Specifications

Features

Type*

Thermal pad

Product colour

Blue

Weight & dimensions

Width

100 mm

Depth

100 mm

Height

1.5 mm

Packaging data

Quantity per pack*

1 pc(s)

Package width

115 mm

Package depth

120 mm

Package height

2.5 mm

Additional Information

More Information
EAN/UPC	4895213703970
MPN	ACTPD00054A
