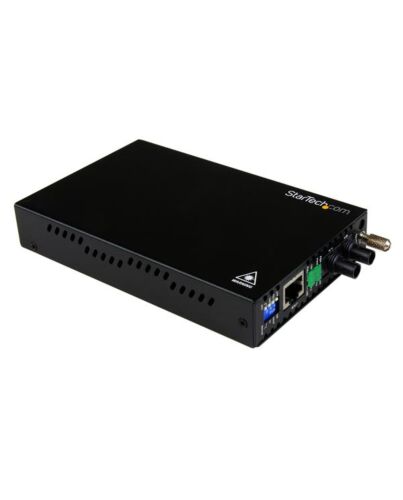

StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
£77.60
StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km, 200 Mbit/s, 10Base-T, 100Base-FX, Fast Ethernet, 10,100 Mbit/s, Full, Half
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber
The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
Network
Maximum data transfer rate*
200 Mbit/s
Converter input interface
10Base-T
Converter output interface
100Base-FX
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance*
2000 m
Wavelength*
1310 nm
Fiber mode structure
Multi-mode
Features
Internal*
No
Plug and Play
Yes
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
ST
DC-in jack
Yes
Power
Output voltage
12 V
Output current
1 A
Power
External power adapter
Yes
Weight & dimensions
Weight
600 g
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
Manual
Yes
Packaging data
Package width
207 mm
Package depth
137 mm
Package height
90 mm
Package weight
757 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Other features
Dimensions (WxDxH)
95 x 160 x 20 mm
Full duplex
Yes
Additional Information
| EAN/UPC | 0065030846257 |
|---|---|
| MPN | ET90110ST2 |
| BRAND | STARTECH |
