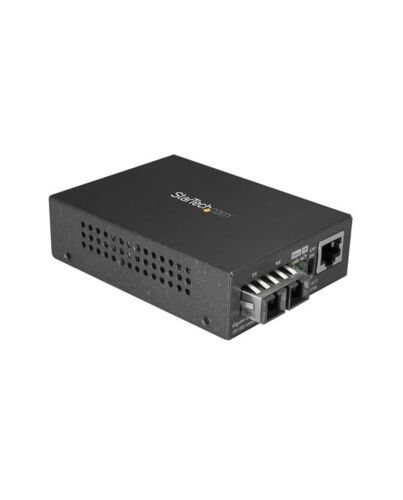

StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex
£64.14
StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex, 1000 Mbit/s, 100Base-TX, 1000Base-T, 1000Base-SX, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
Key Features
- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks_x000D_
- Provides a cost-effective Ethernet to fiber/copper to fiber link_x000D_
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)_x000D_
- Compact design and wall mountable_x000D_
- Non-blocking full wire-speed forwarding rate_x000D_
- Provides DIP switch supporting Link Fault Pass-through function_x000D_
Specifications
Network
Maximum data transfer rate*
1000 Mbit/s
Converter input interface
100Base-TX, 1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Jumbo frames
9000
Flow control support
Yes
Auto MDI/MDI-X
Yes
Store-and-forward
Yes
Duplex system
Full
Performance
Maximum transfer distance*
550 m
Wavelength*
850 nm
Wavelength-division multiplexing (WDM)
No
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
50000 h
Features
Internal*
No
LED indicators
Activity, Link, Power
Product colour
Black
Housing material
Steel
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SC
Power
Input voltage
100 - 240 V
Input current
0.5 A
Output voltage
5 V
Power
Output current
2.6 A
Power consumption (typical)
5 W
External power adapter
Yes
Power plug type
Type N
Weight & dimensions
Width
97 mm
Depth
70 mm
Height
26 mm
Weight
200 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Packaging content
AC adapter included
Yes
Quick installation guide
Yes
Packaging data
Package width
280 mm
Package depth
133 mm
Package height
66 mm
Package weight
564 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC, REACH
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
595 mm
Master (outer) case length
375 mm
Master (outer) case height
320 mm
Products per master (outer) case
20 pc(s)
Additional Information
EAN/UPC | 0065030878227 |
---|---|
MPN | MCMGBSCMM055 |
BRAND | STARTECH |
