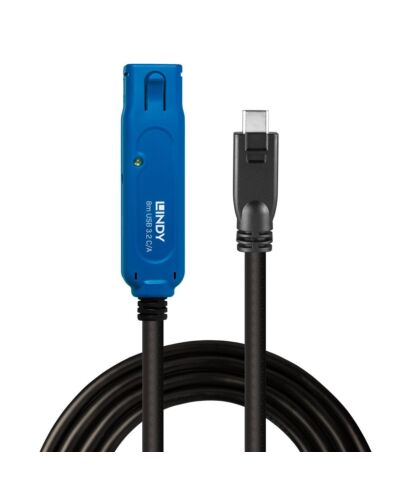

Lindy 43381 USB cable USB 3.2 Gen 1 (3.1 Gen 1) 8 m USB C USB A Black, Blue

£76.67
Lindy 43381, 8 m, USB C, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black, Blue
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

This 8m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a ular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).

Please note that only the USB 3.2 C/A Active Extension Pro 8m (Nr. 43381) or the 5m version (Nr. 43380) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.

If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Key Features

  • High performance, active cable that provides an extended 8m connection between a computer with USB Type C port and a USB Type A device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cables used)
  • Supports the full USB 3.2 / 3.1 Gen 1 / USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
  • USB Power Adapter cable included

Specifications

Features

USB version*
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1*
USB C
Connector 2*
USB A
Connector 1 gender*
Male
Connector 2 gender*
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
24/24/20
Connector contacts plating
Nickel/Gold
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour*
Black, Blue
Cable type
Round cable
Nominal attenuation
0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB

Power

Power note
2.5/0.7mm DC Connector

Weight & dimensions

Cable length*
8 m
Cable diameter
7 mm

Weight & dimensions

Weight
630 g
Bend radius (min)
7 cm
Connector 1 dimensions (WxDxH)
14 x 43.65 x 11.2 mm
Connector 2 dimensions (WxDxH)
20 x 80 x 13 mm

Packaging data

Package type
Box
Package width
230 mm
Package depth
198 mm
Package height
63 mm
Package weight
830 g

Packaging content

Quantity per pack*
1 pc(s)

Sustainability

Sustainability compliance
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS

Additional Information

More Information
EAN/UPC 4002888433815
MPN 43381
BRAND Lindy
