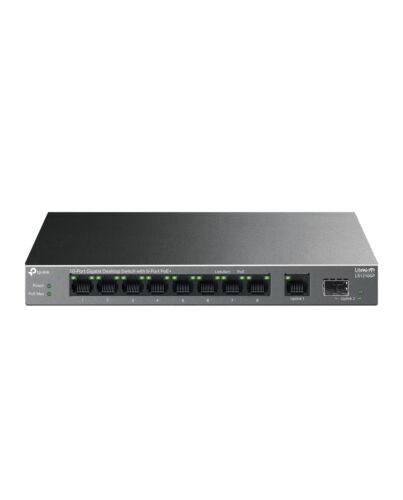

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+
£59.82
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Key Features
- Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity
- 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend e, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Traffic Separation for Higher Security: lation e allows one-click client traffic separation to avoid snooping and tampering, and late broadcast storm
- Plug and Play: Simply plug and play for instant connectivity with no configuration required
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
9
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
1
Network
Networking standards*
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
Switching capacity*
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Jumbo frames
16000
Design
Product colour
Black
LED indicators
Yes
Power
Power source*
DC/PoE
Power supply included*
Yes
AC input voltage
220 V
Power
AC input frequency
50 Hz
DC input voltage
53.5 V
Power consumption (max)
76.96 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
61 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
261.66 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging content
User guide
Yes
Packaging data
Package type
Box
Certificates
Certification
CE, FCC, RoHS
Additional Information
| EAN/UPC | 4895252504576 |
|---|---|
| MPN | LS1210GP |
| BRAND | TP-LINK |
