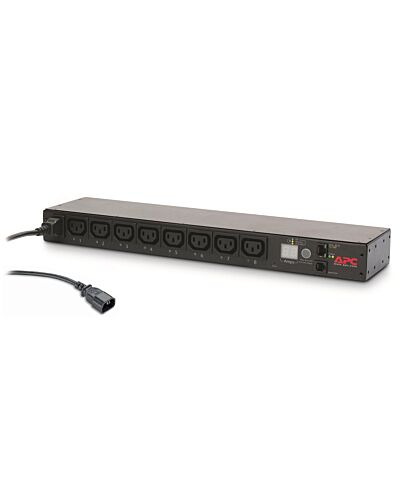

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord
£806.62
APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord, Metered, Switched, 0U/1U, Horizontal/Vertical, Black, 8 AC outlet(s), C13 coupler
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs f remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides -time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
Design
PDU types*
Metered, Switched
Rack capacity*
0U/1U
Mounting
Horizontal/Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
8 AC outlet(s)
Power plug
C14 coupler
AC outlet types*
C13 coupler
Input connection type
IEC-320 C14
Features
Cable length
1.98 m
Management features
Monitoring
Current, Power, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage*
200-230 V
AC input frequency
50 - 60 Hz
Maximum current*
10 A
Nominal output voltage
208-230 V
Load capacity
2300 VA
Maximum input current per phase
10 A
Maximum total current draw per phase
10 A
Maximum power
2300 W
Certificates
Compliance certificates
RoHS
Certification
cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
1 - 15000 m
Weight & dimensions
Width
445 mm
Depth
108 mm
Height
44 mm
Weight
2.27 kg
Packaging content
Packaging content
Installation Guide, Rack Mounting Brackets, User Manual
Packaging data
Package weight
3.45 kg
Package width
470 mm
Package depth
343 mm
Package height
70 mm
Logistics data
Total carbon footprint (kg of CO2e)
915.89
Additional Information
| EAN/UPC | 731304331612 |
|---|---|
| MPN | AP7920B |
| BRAND | APC |
