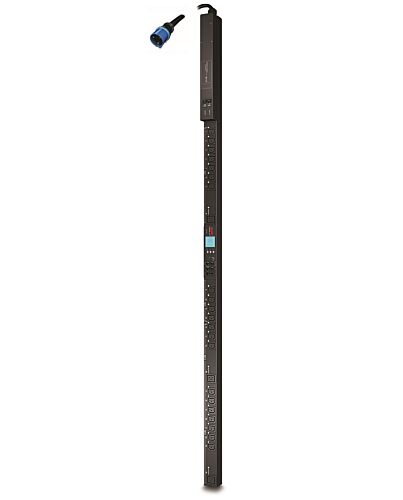

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
£1,703.54
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19, Metered, Metered-by-outlet, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Specifications
Design
PDU types*
Metered, Metered-by-outlet, Switched
Type
Single-phase
Rack capacity*
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
24 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Features
Cable length
3 m
Management features
Monitoring
Current, Power, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage*
230 V
AC input frequency
50 - 60 Hz
Maximum current*
32 A
Nominal output voltage
230 V
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Power protection features
Overload
Maximum power
7680 W
Certificates
Compliance certificates
RoHS
Certification
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
56 mm
Depth
51 mm
Height
1829 mm
Weight
8.23 kg
Packaging data
Package weight
10.5 kg
Package width
162 mm
Package depth
118 mm
Package height
2038 mm
Logistics data
Total carbon footprint (kg of CO2e)
8595.81
Additional Information
| EAN/UPC | 731304276982 |
|---|---|
| MPN | AP8653 |
| BRAND | APC |
