Networking

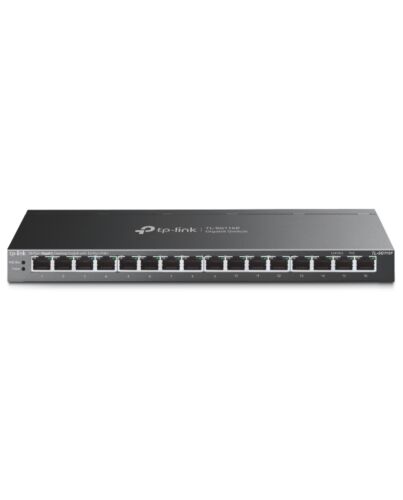

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+
£147.48
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- With 16 PoE+ ports, transfers data and power on one single cable
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 120 W for all PoE ports*
- Up to 250 m data and power transmission range under Extend e**
- Priority e ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- lation e allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Cable length detection
Yes
VLAN support
Yes
Virtual LAN features
Protocol-based VLAN, Tagged VLAN
Number of VLANs
32
Data transmission
Switching capacity*
32 Gbit/s
Forwarding rate
23.81 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
IGMP snooping
Yes
Loop protection
Yes
Design
Stackable*
Yes
Product colour
Black
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes
Power
Power supply included*
Yes
AC input voltage
220 V
AC input frequency
50 Hz
DC input voltage
9 V
Input current
0.6 A
Power consumption (typical)
11.72 W
Power consumption (max)
144.28 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
490.55 BTU/h
Weight & dimensions
Width
286 mm
Depth
111.7 mm
Height
25.4 mm
Packaging content
Quick start guide
Yes
Packaging data
Package width
227 mm
Package depth
434 mm
Package height
70 mm
Package weight
2 kg
Additional Information
| EAN/UPC | 4895252500318 |
|---|---|
| MPN | TL-SG116P |
| BRAND | TP-LINK |
