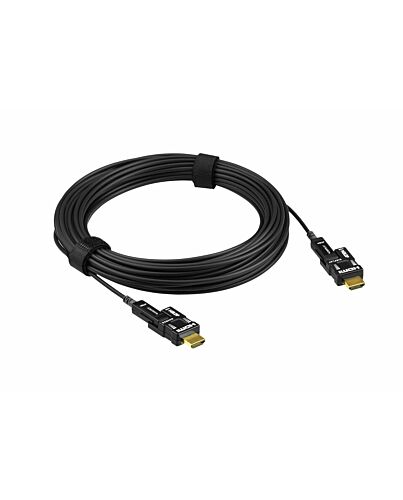

ATEN 30m 4K HDMI Active Optical Cable
£243.95
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATEN VE7833 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 30 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.
1x VE7833 30M True 4K HDMI Active Optical Cable
1x Wiring Tool
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions
1x VE7833 30M True 4K HDMI Active Optical Cable
1x Wiring Tool
2x Screws
1x Micro USB to USB Cable
1x Installation Notice
1x User Instructions
Key Features
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 30 m
- Supports HDR
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
- Additional power source is available via Micro USB cable for better compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
- Pluggable gender for easy installation
- Plug-and-play
Specifications
Features
Cable length*
30 m
Connector 1*
HDMI Type D (Micro)
Connector 2*
HDMI Type D (Micro)
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour*
Black
HDMI version
2.0
3D
Yes
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
HDCP
Yes
HDCP version
2.2
Data transfer rate
18 Gbit/s
Bandwidth
600 MHz
AWG wire size
28
Connector contacts plating*
Gold
Cable material
Copper
Cable jacket material
Plenum (OFNP)
Plug and Play
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operational conditions
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 85%
Certificates
Compliance certificates
RoHS
Certification
CE / FCC / RoHS2 / UL CMP-OF
Weight & dimensions
Cable diameter
3.4 mm
Weight
500 g
Packaging data
Package width
253 mm
Package depth
277 mm
Package height
39 mm
Package weight
722 g
Quantity per pack*
1 pc(s)
Logistics data
Master (outer) case net weight
5 kg
Harmonized System (HS) code
84733080
Master (outer) case width
265 mm
Master (outer) case length
290 mm
Master (outer) case height
450 mm
Master (outer) case gross weight
7.71 kg
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 4719264646119 |
|---|---|
| MPN | VE7833-AT |
| BRAND | ATEN |
