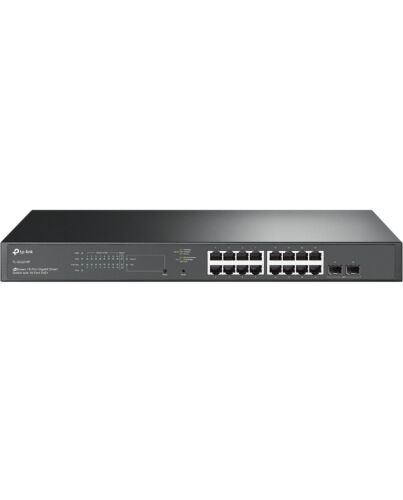

TP-Link JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
£214.44
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ize More Possibilities with Omada
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
Centralized
Cloud Management
Omada SDN Platform Integration
Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More
Abundant Security
Strategies
LAN Area Investment Protection
PoE+ Output
16 PoE+ Ports with
Total 150 W Power Budget
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled f a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
Centralized
Cloud Management
Omada SDN Platform Integration
Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More
Abundant Security
Strategies
LAN Area Investment Protection
PoE+ Output
16 PoE+ Ports with
Total 150 W Power Budget
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled f a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Key Features
- 150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*
- Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius ation, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius ation Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP ule slots quantity
2
Network
Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
IP routing
Yes
Policy-based routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Data transmission
Switching capacity*
26.78 Gbit/s
Forwarding rate
26.78 Mpps
MAC address table*
8000 entries
Jumbo frames support
Yes
Jumbo frames
9
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL)
Yes
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Loop protection
Yes
Security
BPDU filtering/protection
Yes
ation
MAC-based ation, Port-based ation
Multicast features
Multicast support
Yes
Multicast features
Multicast forwarding
Design
Rack mounting*
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Power
Power source*
DC/PoE
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
181.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Total Power over Ethernet (PoE) budget
150 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
619.06 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
LAN (RJ-45)
User guide
Yes
Packaging data
Package type
Box
Package width
250 mm
Package depth
528 mm
Package height
80 mm
Package weight
2.76 kg
Certificates
Certification
CE, FCC, RoHS
Additional Information
| EAN/UPC | 4897098689516 |
|---|---|
| MPN | TL-SG2218P |
| BRAND | TP-LINK |
