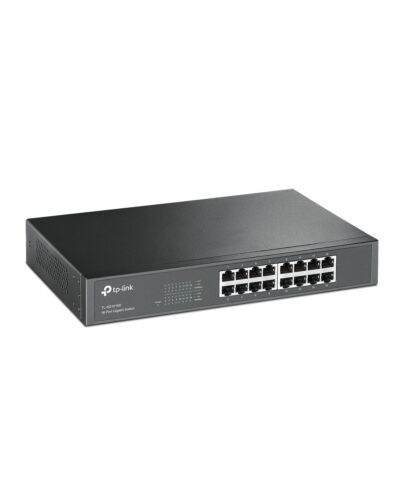

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

£58.96
TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex e and backpressure for Half Duplex e alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Key Features

  • 16 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

Specifications

Management features

Switch type*
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack

Network

Networking standards*
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity*
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000

Protocols

Supported network protocols
CSMA/CD, TCP/IP

Design

Rack mounting*
Yes
Stackable*
Yes
Product colour
Black
LED indicators
Yes

Performance

Compatible operating systems
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Maximum cable length
100 m
Fanless
Yes

Power

Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
9.26 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
31.6 BTU/h

Weight & dimensions

Width
294 mm
Depth
180 mm
Height
44 mm

Packaging content

Cables included
AC
User guide
Yes
Rack mount kit
Yes

Packaging data

Package type
Box
Package width
250 mm
Package depth
400 mm
Package height
80 mm
Package weight
1.85 kg

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 6935364020613
MPN TL-SG1016D
BRAND TP-LINK
