Data Input Devices

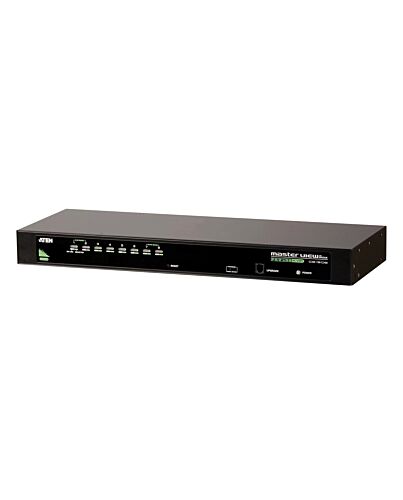

ATEN 8-Port USB - PS/2 VGA KVM Switch
£193.06
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers f a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled f a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled f a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Key Features
- One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers
- Broadcast e - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Specifications
Ports & interfaces
Number of computers controlled*
64
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
VGA (D-Sub) ports quantity
8
Console ports*
VGA (D-Sub)
DC-in jack
Yes
Performance
HD type*
QXGA
Maximum resolution*
2048 x 1536 pixels
Scan interval
1,255 s
DDC2B support
Yes
upgradeable
Yes
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Metal
Cascadable
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
5 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
System requirements
Other operating systems supported
Yes
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
161.3 mm
Depth
437.2 mm
Height
44 mm
Weight
1.89 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.69 kg
Packaging content
Quick installation guide
Yes
AC adapter included
Yes
Rack mount kit
Yes
Rubber feet
Yes
Logistics data
Master (outer) case net weight
6.72 kg
Harmonized System (HS) code
85176200
Master (outer) case width
375 mm
Master (outer) case length
565 mm
Master (outer) case height
258 mm
Master (outer) case gross weight
8.7 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4710423775916 |
|---|---|
| MPN | CS1308 |
| BRAND | ATEN |
