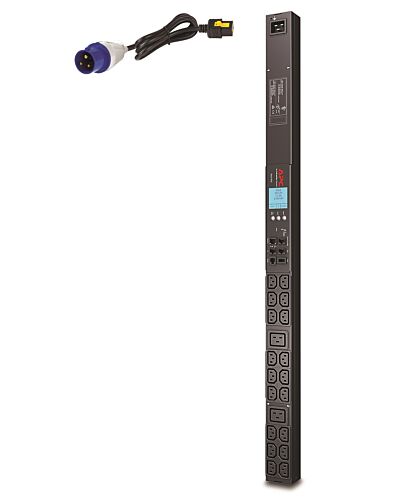

APC AP8858EU3 power distribution unit (PDU) 20 AC outlet(s) 0U
£727.85
APC AP8858EU3, Metered, 0U, Vertical, 20 AC outlet(s), C13 coupler, C19 coupler, IEC309
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, power (kW) & energy (kWh). This PDU offers LCD display, -time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs f 1 IP address as well as a local USB port for easy local updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
PDU types*
Metered
Rack capacity*
0U
Mounting
Vertical
Ports & interfaces
AC outlets quantity*
20 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Input connection type
IEC 309 16A 2P+E
Output connections
18x IEC 320 C13
2x IEC 320 C19
Features
Cable length
3 m
Management features
Monitoring
Current, Power, Voltage
Power
AC input frequency
50 - 60 Hz
Nominal output voltage
230 V
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
3680 W
Certificates
Certification
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS, REACH
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
56 mm
Depth
44 mm
Height
902 mm
Weight
2.93 kg
Packaging data
Package weight
4.92 kg
Package width
162 mm
Package depth
107 mm
Package height
1124 mm
Logistics data
Total carbon footprint (kg of CO2e)
13349.44
Additional Information
| EAN/UPC | 731304277033 |
|---|---|
| MPN | AP8858EU3 |
| BRAND | APC |
