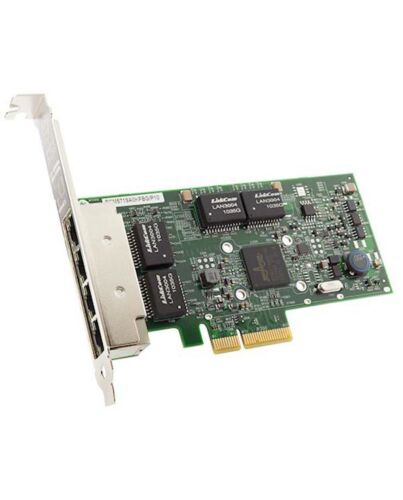

Lenovo ThinkSystem Broadcom 5719 Internal Ethernet 1000 Mbit/s
£123.66
Lenovo ThinkSystem Broadcom 5719, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Key Features
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- Full line-rate performance across all ports
- Standard form factor adapters, either PCIe low profile or OCP 3.0 SFF
- PCI Express 2.0 host interface
- Jumbo Frames support (9600 bytes frames)
- Wake-on-LAN (WoL) support
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 802.3x flow control support
- IEEE 802.3ad link aggregation support
- IEEE 802.3 auto-negotiation support
- Automatic MDI crossover
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
PCI Express
Interface*
Ethernet
Ethernet LAN (RJ-45) ports
4
Network
Maximum data transfer rate*
1000 Mbit/s
Networking standards*
IEEE 802.1Q
Ethernet LAN data rates
10,100,1000 Mbit/s
Design
Component for*
Server/workstation
Internal*
Yes
Weight & dimensions
Width
132 mm
Depth
19 mm
Height
65 mm
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 889488433599 |
|---|---|
| MPN | 7ZT7A00484 |
| BRAND | LENOVO |
