APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black
£1,112.17
APC AP8881, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

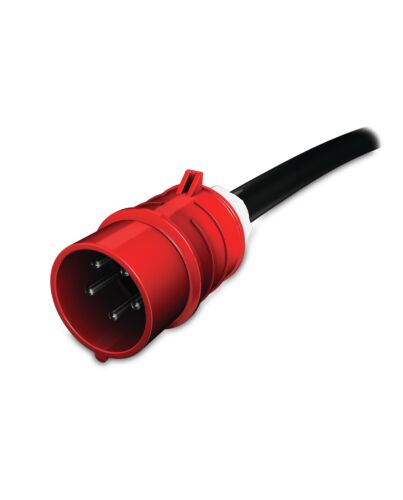

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
PDU types*
Metered
Rack capacity*
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
42 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Input connection type
IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections
36x IEC 320 C13
6x IEC 320 C19
Features
Cable length
1.83 m
Management features
Monitoring
Current, Power, Voltage
Power
Nominal input voltage*
400 V
AC input frequency
50 - 60 Hz
Maximum current*
16 A
Nominal output voltage
230 V
Power
Load capacity
11040 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
11000 W
Certificates
Certification
CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE
RoHS, REACH
Operational conditions
Operating temperature (T-T)
5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
56 mm
Depth
44 mm
Height
1791 mm
Weight
6.38 kg
Logistics data
Total carbon footprint (kg of CO2e)
41106.13
Additional Information
| EAN/UPC | 731304277071 |
|---|---|
| MPN | AP8881 |
| BRAND | APC HW |
