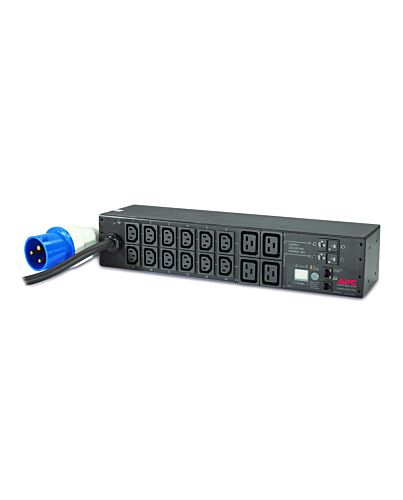

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
£951.05
APC AP7822B, Metered, 2U, Single-phase, Horizontal/Vertical, Black, 16 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Specifications
Design
PDU types*
Metered
Type
Single-phase
Rack capacity*
2U
Mounting
Horizontal/Vertical
Product colour
Black
On/off switch
Yes
Ports & interfaces
AC outlets quantity*
16 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Input connection type
IEC 309 32A 2P+E
Output connections
12 x C13
4 x C19
Features
LED indicators
Yes
Cable length
3.66 m
Management features
Monitoring
Current, Power, Voltage
Power
Nominal input voltage*
208-230 V
AC input frequency
50 - 60 Hz
Maximum current*
32 A
Load capacity
7680 VA
Maximum input current per phase
32 A
Maximum total current draw per phase
32 A
Power
Power protection features
Overload
Maximum power
7680 W
Certificates
Compliance certificates
RoHS
Certification
C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
444 mm
Depth
112 mm
Height
88 mm
Weight
3.36 kg
Packaging data
Package weight
5.41 kg
Package width
508 mm
Package depth
368 mm
Package height
140 mm
Logistics data
Total carbon footprint (kg of CO2e)
8952.07
Additional Information
| EAN/UPC | 731304331520 |
|---|---|
| MPN | AP7822B |
| BRAND | APC |
