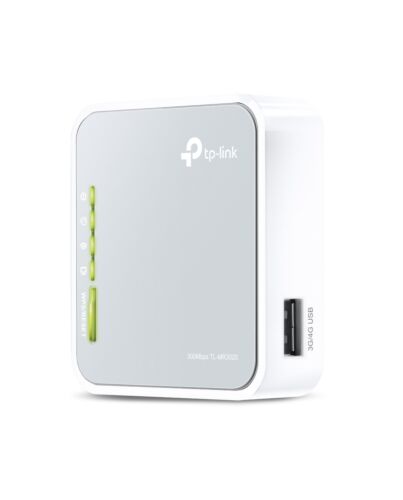

TP-Link Portable 3G/4G Wireless N Router
£17.63
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
With a travel-sized design, a mini USB port, Wireless N speeds up to 150Mbps and a high compatibility with 3G modems, TP-LINK’s new Portable 3G/3.75G Wireless N Router,
TL-MR3020 is the ideal device to provide wireless cloud for iPads™, iTouches™, Android™ Phones, Kindles™ and the vast majority of other portable Wi-Fi enabled devices.
Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.
Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.
TL-MR3020 is the ideal device to provide wireless cloud for iPads™, iTouches™, Android™ Phones, Kindles™ and the vast majority of other portable Wi-Fi enabled devices.
Travel-sized Design
With the travel-sized and compact design, TL-MR3020 is small enough to take on the road and make sure that you can share a 3G internet connection wherever wireless 3G coverage is available.
Travel Router with 3G/4G Function
TL-MR3020 is the ideal travel partner for people on the go. 3G Router Mode enables you to plug in a 3G USB modem and share it wirelessly. Its Travel Router Mode (AP Mode) allows you to conveniently setup an internet connection utilizing a hotel WAN cable. Meanwhile, you can also use the switch on the side of the router to choose between Travel Router Mode, 3G Router Mode and WISP Client Router Mode based on your different requirements.
Key Features
- Share a 3G/4G mobile connection, compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, tested in the field
- Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available
- Wireless speed is up to 150Mbps
- Three modes available for different situations: 3G/4G* Router, WISP Client Router and Travel Router Mode (AP Mode)
- With 3G/4G and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection
Specifications
WAN connection
Ethernet WAN*
Yes
DSL WAN*
No
SIM card slot*
No
3G/4G USB modem compatibility*
Yes
Wireless LAN features
Wi-Fi band*
Single-band (2.4 GHz)
Top Wi-Fi standard*
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)*
150 Mbit/s
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Ethernet LAN*
Yes
Ethernet LAN interface type*
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Cabling technology
10/100Base-T(X)
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding
Yes
Mobile network
3G
Yes
4G
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
USB port*
Yes
USB 2.0 ports quantity
1
USB charging port
Yes
Memory card slot(s)
No
DC-in jack
Yes
Management features
Web-based management
Yes
Reset button
Yes
Security
Security algorithms
128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Firewall
Yes
Filtering
Yes
MAC address filtering
Yes
DMZ support
Yes
Protocols
DHCP client
Yes
DHCP server
Yes
Universal Plug and Play (UPnP)
Yes
Design
Product colour
Grey, White
LED indicators
Yes
Product type*
Portable router
Certificates
Certification
CE, FCC, RoHS
Packaging content
Cables included
LAN (RJ-45), USB
AC adapter included
Yes
Antenna
Antenna design*
Internal
Power
Power source type*
AC, USB
Output voltage
5 V
Output current
1 A
Operational conditions
Operating temperature (T-T)
10 - 60 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
System requirements
Windows operating systems supported
Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Weight & dimensions
Width
74 mm
Depth
67 mm
Height
22 mm
Packaging data
Package width
110 mm
Package depth
109 mm
Package height
81.5 mm
Package weight
210 g
Logistics data
Harmonized System (HS) code
85176990
Other features
Mobile network connection
Yes
WLAN data transfer rates supported
150 Mbit/s
Frequency range
2.4 - 2.4835 GHz
Additional Information
| EAN/UPC | 6935364082352 |
|---|---|
| MPN | TL-MR3020 V3 |
| BRAND | TP-LINK |
