TP-Link 10/100 Mbps WDM Media Converter
£16.31
TP-Link 10/100 Mbps WDM Media Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, 10,100 Mbit/s, 10BASE-T, 100BASE-T, 100BASE-FX, Full, Half
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does

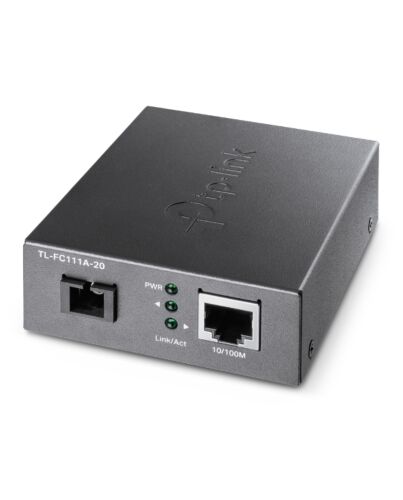

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Key Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
Specifications
Network
Maximum data transfer rate*
100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-T
Fiber ethernet cabling technology
100BASE-FX
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Performance
Maximum transfer distance*
20000 m
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Features
Internal*
No
LED indicators
Activity, Link, Power
Product colour
Black
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector*
SC
Power
Output voltage
5 V
Output current
0.6 A
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
165 mm
Package depth
204 mm
Package height
65 mm
Package weight
360 g
Certificates
Compliance certificates
RoHS
Certification
FCC, CE
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364010966 |
|---|---|
| MPN | FC111A-20 |
| BRAND | TP-LINK |
